5.0mm Right Angle High Current Crimp Terminal Socket Pin
5.0mm Right Angle High Current Crimp Terminal Socket Pin
SKU:HIG-e45f12
Reliable 5.0mm Right Angle High Current Socket Pin for versatile high current applications, offering durability and easy installation in tight spaces.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
5.0mm Right Angle High Current Crimp Terminal Socket Pin
$24.99
Quantity: 1
Claim Your Seller Account
5.0mm Right Angle High Current Crimp Terminal Socket Pin
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

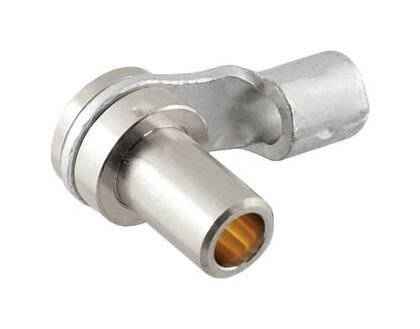

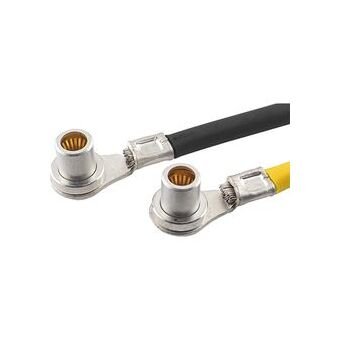

The 5.0mm Right Angle High Current Crimp Terminal Socket Pin is engineered for seamless attachment and detachment with a durable beryllium copper louver. Featuring a versatile design that allows insertion from either the top or bottom, this socket pin is perfect for tight spaces where traditional screws are impractical. With maximum contact resistance of 15 mΩ and a current rating of 20A at 25°C, this socket pin ensures reliable performance in diverse high current applications. Crafted from high-quality materials including brass, copper alloy, and nickel plating, it offers exceptional durability and conductivity. Be assured of safety and efficiency with this high-current socket pin that meets stringent quality standards.
Product Specifications
Materials Crimp Terminal
Copper Alloy, Sn plating over Ni (R2-4S)
Materials Louver
Copper Alloy, Au plating over Ni
Materials Plug
Brass, Au plating over Ni
Materials Ring
Brass, Sn plating over Ni
Materials Sleeve
Brass, Tin (Sn) Plating Over Nickel (Ni)
Note
Be mindful of the wire's heat resistance.

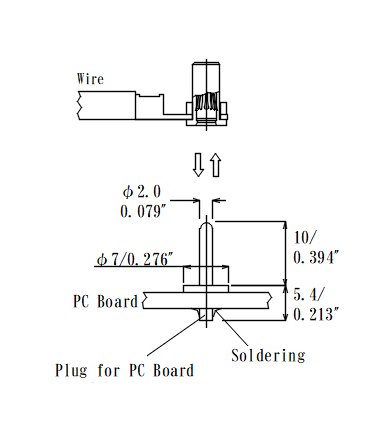

Specifications Acceptable Plug Diameter
2.0 mm | 0.079 in
Specifications Durability
5,000 cycles
Specifications Maximum Contact Resistance
15 mΩ
Specifications Maximum Current Rating A At 25 Degree Celsius C T
20 A
Specifications Maximum Insertion Force
10 N
Specifications Solid Wire
1.40 to 1.82 mm²
Specifications Strand Wire
1.80 to 2.63 mm²
Specifications Temperature Range
-40 to 150 ºC
Specifications Thickness
14 AWG
