5/16" 316 Stainless Steel Straight D Shackle with Captive Pin

5/16" 316 Stainless Steel Straight D Shackle with Captive Pin

SKU:WIR-fff657

High-quality 5/16" Stainless Steel D Shackle with Captive Pin for lifting and towing needs.

Regular price $15.99
Regular price Sale price $15.99
Sale

Initiate Order

5/16" 316 Stainless Steel Straight D Shackle with Captive Pin

5/16" 316 Stainless Steel Straight D Shackle with Captive Pin

$15.99

Quantity: 1

Claim Your Seller Account

5/16" 316 Stainless Steel Straight D Shackle with Captive Pin

5/16" 316 Stainless Steel Straight D Shackle with Captive Pin

$15.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

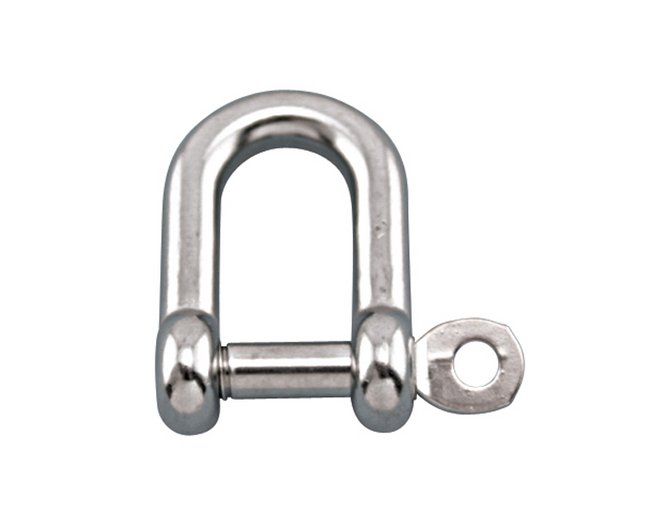

The 5/16" Size A 316 Stainless Steel Straight D Shackle with Captive Pin is a top-quality product designed for various lifting and towing applications. Made from durable 316 stainless steel, this shackle ensures superior strength and corrosion resistance. The captive pin adds convenience and safety by remaining attached even when fully opened. With a Working Load Limit of 1000 lb, precision cast construction, and flush pin design, this shackle is ideal for both consumer and institutional use.

Product Specifications

Note 0
Screw pin is captive and not removable. When it's fully opened, the end of the pin will sit flush with the inside of the shackle.

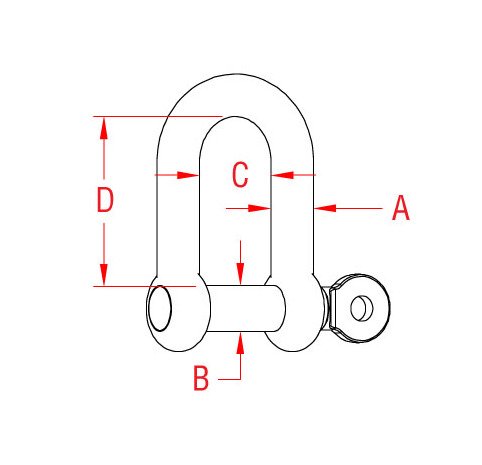

Specifications C
0.62 "
Specifications D
1.10 "
Specifications Dimension B
0.31 "
Specifications Key Features
Import | Precision Cast
Specifications Material
316 Stainless Steel
Specifications Shackle Type
D Shackle
Specifications Size A
5/16 "
Specifications Weight
0.12 lb
Specifications Wll
1000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
