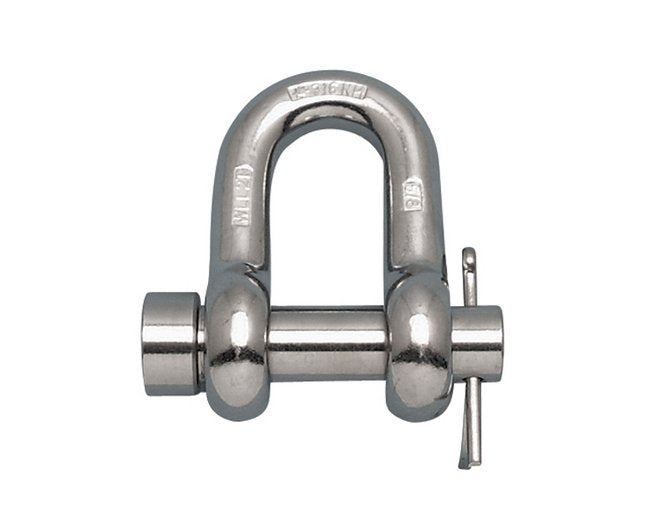

5/16 Inch 316-NM Stainless Steel Chain Shackle with Oversized Round Pin

Name: 5/16 Inch 316-NM Stainless Steel Chain Shackle with Oversized Round Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-ca1816
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-ca1816

High-quality 5/16 Inch 316-NM Stainless Steel Chain Shackle with Oversized Round Pin for heavy-duty applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 5/16 Inch 316-NM Stainless Steel Chain Shackle with Oversized Round Pin is a durable and reliable shackle designed for heavy-duty chain applications. Constructed from high-quality 316-NM stainless steel, this shackle is drop forged and import-marked, ensuring top-notch quality and performance. With a working load limit of 1,300 lbs, it meets federal specification RR-C-271F, type IVB, class 1, making it ideal for various industrial and government usage.

Product Specifications

Note 0

I/A/W federal. Specification RR-C-271F, type IVB, class 1, (except 316 stainless steel). Marked to the nearest fractional ton.

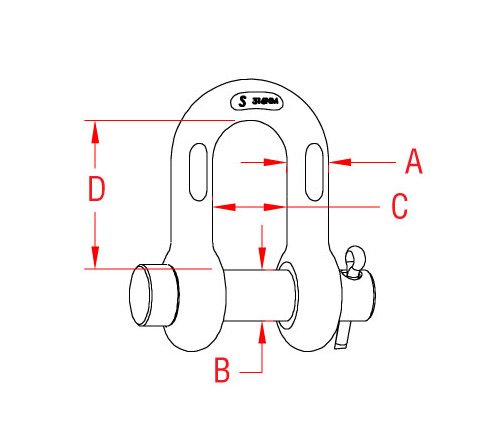

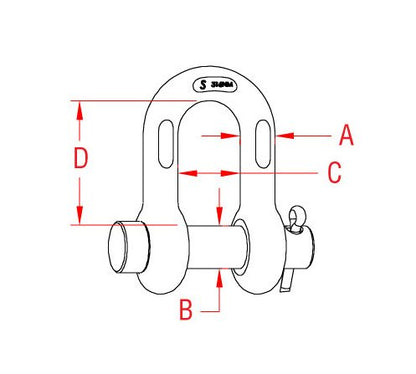

Specifications Applications

Chain

Specifications C

0.52 "

Specifications D

1.02 "

Specifications Dimension B

0.37 "

Specifications Key Features

Drop Forged | Import | Load Rated

Specifications Material

316-NM Stainless Steel

Specifications Size A

5/16 "

Specifications Weight

0.16 lb

Specifications Wll

1,300 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

5/16 Inch 316-NM Stainless Steel Chain Shackle with Oversized Round Pin
