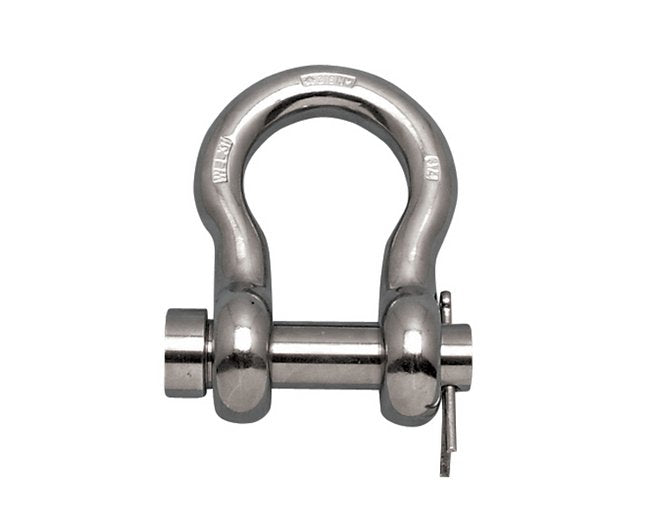

5/16 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Round Pin

5/16 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Round Pin

SKU:WIR-3fd8f1

Premium 5/16" 316-NM Stainless Steel US Anchor Shackle for heavy-duty lifting and towing operations.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

5/16 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Round Pin

5/16 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Round Pin

$24.99

Quantity: 1

Claim Your Seller Account

5/16 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Round Pin

5/16 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Round Pin

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 5/16 Inch Size A 316-NM Stainless Steel US Anchor Shackle with Oversized Round Pin is a top-of-the-line wire rope hardware designed for anchor applications. This shackle is drop forged, load rated, and proudly made in the USA, ensuring exceptional quality and reliability. With a Working Load Limit of 1,300 lb, this shackle is ideal for heavy-duty lifting and towing operations. It meets federal specification RR-C-271F, type IVA, class 1, except 316 stainless, and is marked to the nearest fractional ton, making it compliant with stringent procurement standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
I/A/W federal. Specification RR-C-271F, type IVA, class 1, except 316 stainless. Marked to the nearest fractional ton.
Specifications Applications
Anchor

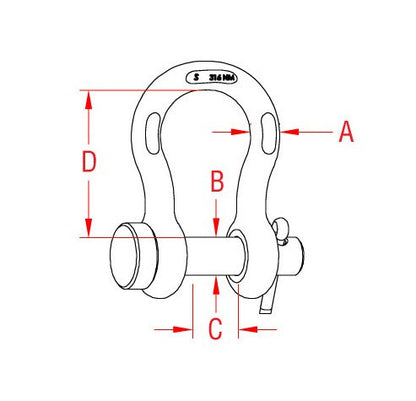

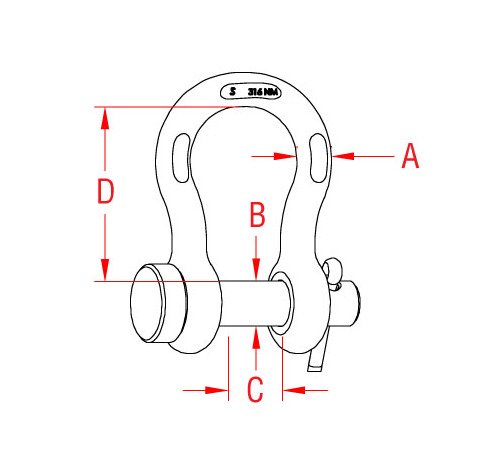

Specifications C
0.53 "
Specifications D
1.20 "
Specifications Dimension B
0.38 "
Specifications Key Features
Drop Forged | Load Rated | Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Size A
5/16 "
Specifications Weight
0.17 lb
Specifications Wll
1,300 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
