5/16 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin

5/16 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin

SKU:WIR-14a53f

Reliable 5/16 Inch 316-NM Stainless Steel Anchor Shackle for lifting and towing applications. Made in the USA, compliant with federal and ASME standards.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

5/16 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin

5/16 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin

$24.99

Quantity: 1

Claim Your Seller Account

5/16 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin

5/16 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 5/16 Inch Size A 316-NM Stainless Steel US Anchor Shackle is a reliable and durable tool for lifting or towing applications. This shackle is drop forged, load rated, and proudly made in the USA. With a Working Load Limit of 1,300 lb, it ensures safe and secure anchoring. Compliant with federal specifications RR-C-271F, ASME B30.26-2004 American National Standard, and DFARS regulations, this shackle meets high industry standards.

Product Specifications

Note 0
I/A/W federal. Specification RR-C-271F, type IVA, class 2, except 316 stainless. Meets ASME B30.26-2004 American National Standard. DFARS compliant shackles. S0116-NM nitronic anchor shackles also available.

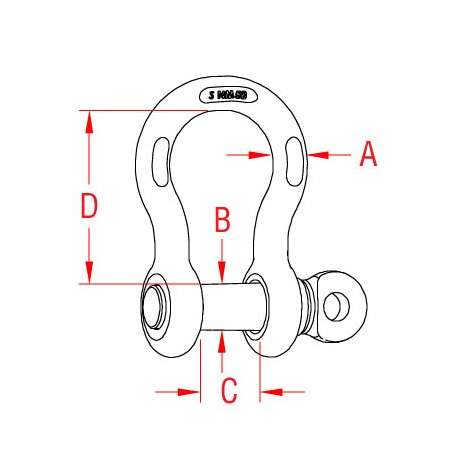

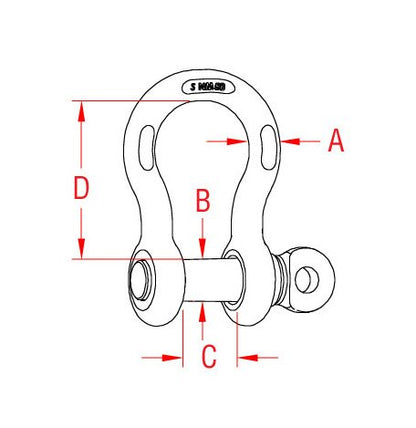

Specifications Applications
Anchor
Specifications C
0.53 "
Specifications D
1.20 "
Specifications Dimension B
0.38 "
Specifications Key Features
Drop Forged | Load Rated | Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Size A
5/16 "
Specifications Weight
0.17 lb
Specifications Wll
1,300 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
