5/16 Inch 316 Stainless Steel Hoist Anchor Base

5/16 Inch 316 Stainless Steel Hoist Anchor Base

SKU:WIR-57772b

Precision machined 316 stainless steel anchor base for maximum corrosion resistance and reliable performance. Working Load Limit: 1,300 lb.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

5/16 Inch 316 Stainless Steel Hoist Anchor Base

5/16 Inch 316 Stainless Steel Hoist Anchor Base

$24.99

Quantity: 1

Claim Your Seller Account

5/16 Inch 316 Stainless Steel Hoist Anchor Base

5/16 Inch 316 Stainless Steel Hoist Anchor Base

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

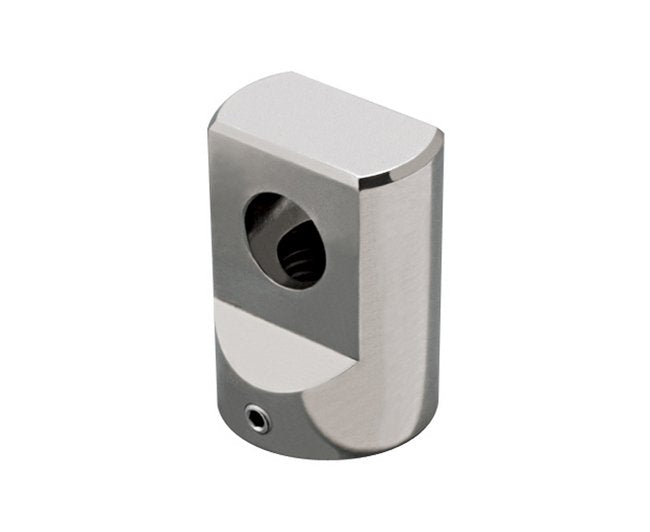

The 5/16 Inch 316 Stainless Steel Hoist Anchor Base is precision machined from 316 stainless steel, offering maximum corrosion resistance. This anchor base is designed for use with standard shackle types and sizes, ensuring durability and reliability in various applications. With a working load limit of 1,300 lb, this Suncor exclusive product is ideal for wire rope systems in demanding environments.

Product Specifications

Note 0
316 stainless steel for maximum corrosion resistance. Designed for use with standard shackle types and sizes.

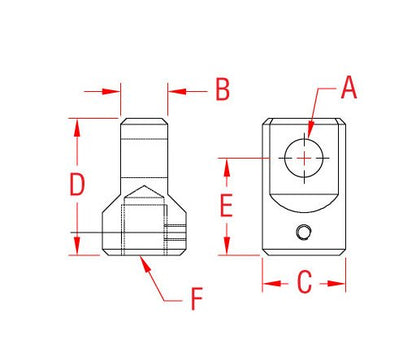

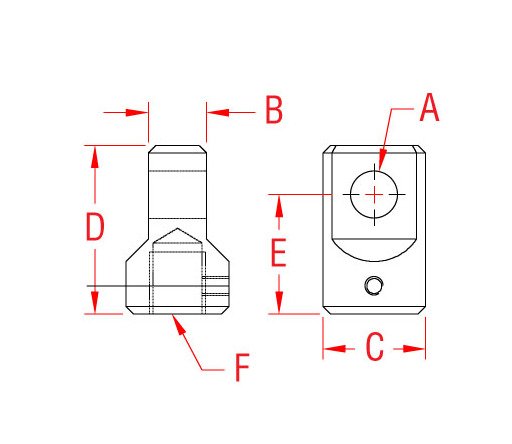

Specifications C
1.20 "
Specifications D
0.88 "
Specifications Dimension A
0.38 "
Specifications Dimension B
1.63 "
Specifications E
7/16 in.-14 (UNC Thread)
Specifications F
0.48 "
Specifications Key Features
Import | New Product | Precision Machined | Suncor Exclusive
Specifications Material
316 Stainless Steel
Specifications Nominal Size
5/16 "
Specifications Weight
0.18 lb
Specifications Wll
1,300 lb
CAGE
0T9L4
NAICS
332510
PSC
4030
