5/16 Inch Low Profile Steel Collar

Name: 5/16 Inch Low Profile Steel Collar
Brand: Ornit USA
SKU: LOW-70d78d
Price: 39.99 USD
Availability: OutOfStock

SKU:LOW-70d78d

Durable 5/16 Inch Low Profile Steel Collar for industrial and institutional applications. Carbon Steel C-1008 with Zinc finish.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

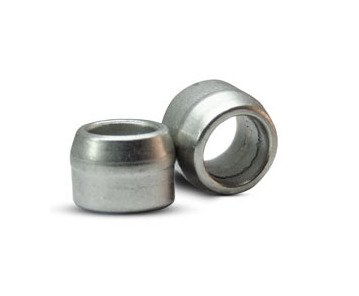

The 5/16 Inch Low Profile Steel Collar by Ornit is a superior fastening solution designed for industrial and institutional applications. Made from Carbon Steel C-1008 with a Zinc finish, this collar offers durability and corrosion resistance. With a head shape that ensures a secure grip, this collar has a diameter range of 0.304 to 0.312 inches and a length of 0.255 to 0.225 inches. Ideal for use in various materials, it meets stringent procurement standards and facilitates efficient fastening with its low profile design. Ensure precision and reliability with Ornit's high-quality steel collar.

Product Specifications

Note Note

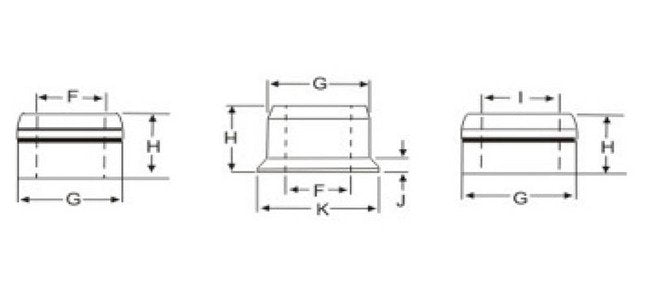

When using Low Profile collars, subtract "J" dimension from thickness of material being fastened to determine grip number.

Technical Specs Brands

Ornit

Technical Specs Coating

Zinc

Technical Specs Diameter

5/16 in

Technical Specs Diameter F

0.304 to 0.312 in

Technical Specs Finish

Zinc

Technical Specs Head Shape

Low Profile

Technical Specs Length H

0.255 - 0.225 in

Technical Specs Material

Carbon Steel c-1008

Technical Specs Maximum Dimension J

0.125 in

Technical Specs Maximum Hole Diameter

0.494 in

Technical Specs Minimum Hole Diameter

0.485 in

Technical Specs Weight Per 1000 Pieces

3.9 kg
