5/32 Inch 316 Stainless Steel Long D Shackle with Captive Pin

5/32 Inch 316 Stainless Steel Long D Shackle with Captive Pin

SKU:WIR-c3a10c

Durable 5/32" 316 Stainless Steel Long D Shackle for optimal rigging and lifting tasks.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

5/32 Inch 316 Stainless Steel Long D Shackle with Captive Pin

5/32 Inch 316 Stainless Steel Long D Shackle with Captive Pin

$12.99

Quantity: 1

Claim Your Seller Account

5/32 Inch 316 Stainless Steel Long D Shackle with Captive Pin

5/32 Inch 316 Stainless Steel Long D Shackle with Captive Pin

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

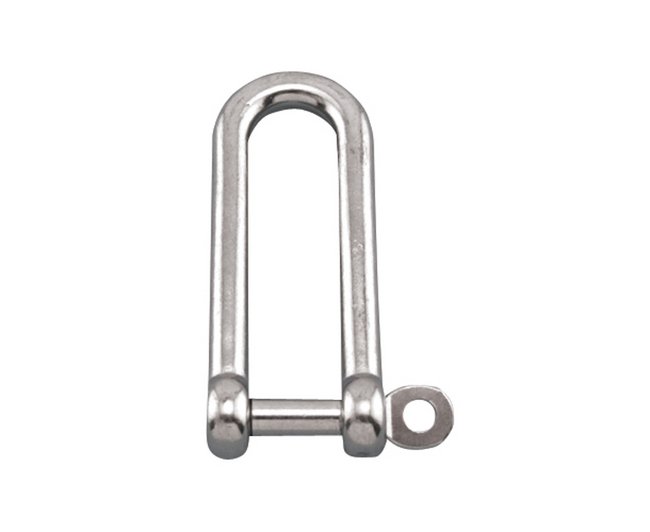

The 5/32 Inch Size A 316 Stainless Steel Long D Shackle with Captive Pin is a durable and reliable wire rope hardware essential. Made of high-quality 316 stainless steel, this shackle offers superior corrosion resistance and strength. Featuring a precision cast D-shackle design, with a captive screw pin ensuring secure fastening. With a Working Load Limit of 200 lb, this shackle is ideal for various rigging and lifting applications. Meeting stringent industry standards, this shackle is perfect for both consumer and institutional buyers seeking quality and compliance.

Product Specifications

Note 0
Screw pin is captive and not removable. When it's fully opened, the end of the pin will sit flush with the inside of the shackle.

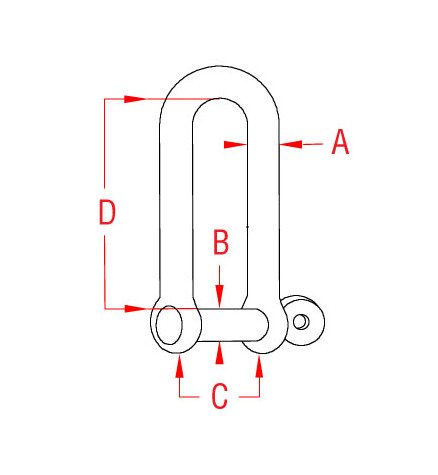

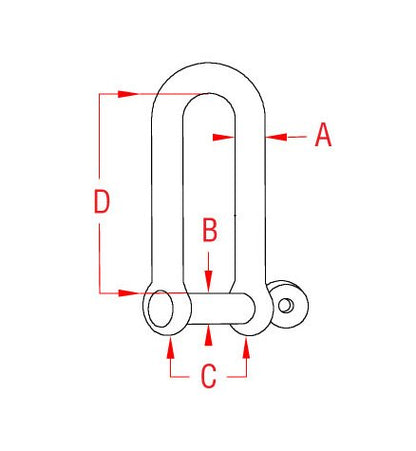

Specifications C
0.30 "
Specifications D
1.17 "
Specifications Dimension B
0.15 "
Specifications Key Features
Import | Precision Cast
Specifications Material
316 Stainless Steel
Specifications Shackle Type
D Shackle
Specifications Size A
5/32 "
Specifications Weight
0.03 lb
Specifications Wll
200 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
