5.375" x 1.375" Standard Chip Deflector - Cold Rolled Steel

Name: 5.375" x 1.375" Standard Chip Deflector - Cold Rolled Steel
Brand: Bermar Associates, Inc.
SKU: STA-5512c5
Price: 34.99 USD
Availability: OutOfStock

SKU:STA-5512c5

Durable 16 gauge cold-rolled steel chip deflector for machinery protection. Ideal for hot chip applications with easy mounting instructions.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your machinery with the 5.375" x 1.375" Standard Chip Deflector made from durable 16 gauge cold-rolled steel. Protect machine ways and way wipers from metal chips, ideal for hot chip applications. Easily mount with included instructions for added strength and longevity. Custom sizes available upon request.

Product Specifications

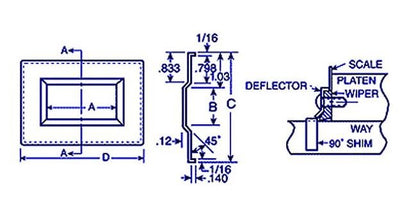

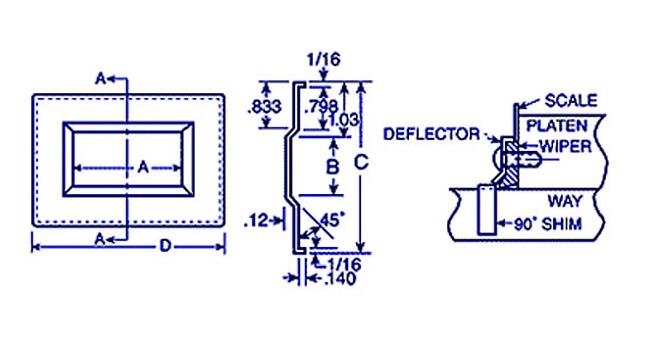

Mounting Instructions Mounting Instructions

Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90Âº shim under lip of deflector.Use 6" scale. Apply pressure 90Âº leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.

Specifications Dimension A

5.375 in

Specifications Dimension B

1.375 in

Specifications Materials

Cold Rolled Steel (CRS)

Specifications Material Thickness

16 gauge
