5.5mm Right Angle Socket Contact Stackable, Flash Lamp Connector
5.5mm Right Angle Socket Contact Stackable, Flash Lamp Connector
SKU:HIG-9fa2cc
High-current 5.5mm Right-Angle Socket Contact Stackable Connector for efficient interconnections. Superior performance and durability.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
5.5mm Right Angle Socket Contact Stackable, Flash Lamp Connector
$34.99
Quantity: 1
Claim Your Seller Account
5.5mm Right Angle Socket Contact Stackable, Flash Lamp Connector
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

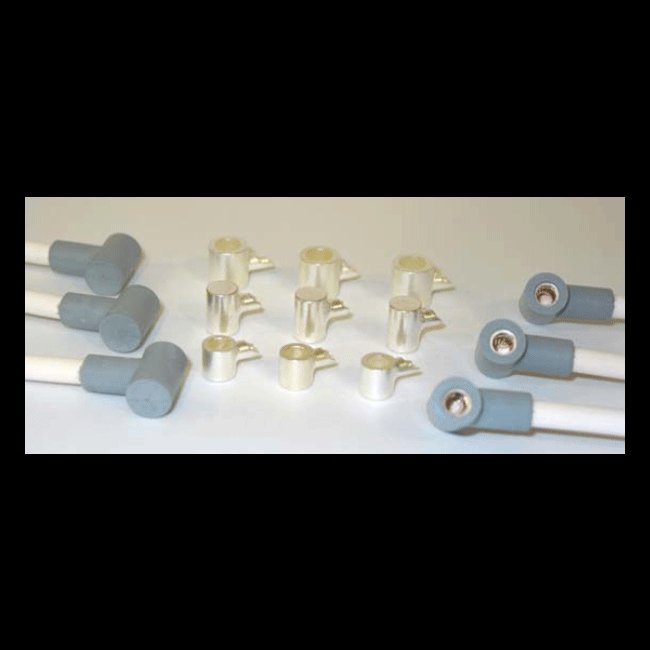

The Flash Lamp Series Electrical Connectors featuring the 5.5mm Right Angle Socket Contact Stackable provide a high-current interconnection solution for applications prioritizing space, weight, and temperature concerns. Utilizing Multilam band contact spring finger technology, these connectors offer higher current ratings with lower temperature rise than conventional designs. With silicone rubber over moldings attached to high voltage wire, they ensure a superior voltage barrier. Ideal for Laser Back Lighting, Illumination, and Percussion applications, these connectors operate at 12 kV DC, supporting current rating up to 95 A. They are crafted with Tellurium Copper Alloy 145, Silver Plated and Beryllium Copper Alloy, Gold Plated materials, meeting rigorous industry standards.
Product Specifications
Applications 0
LaserBack Lighting & IlluminationPercussion
Ordering Information 0
Flash lamp plugs can be ordered as single ended or double ended assemblies in any combination of molded plug or socket contact at each end. Consult factory for custom configuration part numbers.Flash lamp contacts can be ordered with or without wire terminated. connectronics offers a variety of wire constructions for use with flash lamp contacts. Consult factory for additional information.
Specifications Contact Body Material
Tellurium Copper Alloy 145, Silver Plated Per qq-s-365
Specifications Current Rating
95 A
Specifications Direct Current Dc Voltage
12 kV
Specifications Features
High Current RatingsOperating Voltage: through 12 KVDCTemperature Range: -40°C to +175°CSea Level to 10,000 ft OperationOvermolded Strain Relief available4mm, 5mm, 5.5mm and 6mm optionsStackable or Threaded options
Specifications Molded Strain Relief Material
Silicone Rubber, Gray
Specifications Multi Lam Contact Band Spring Fingers Material
Beryllium Copper Alloy, Gold Plated Per MIL-G-45204
Specifications Sea Level Altitude
0 to 10,000 ft

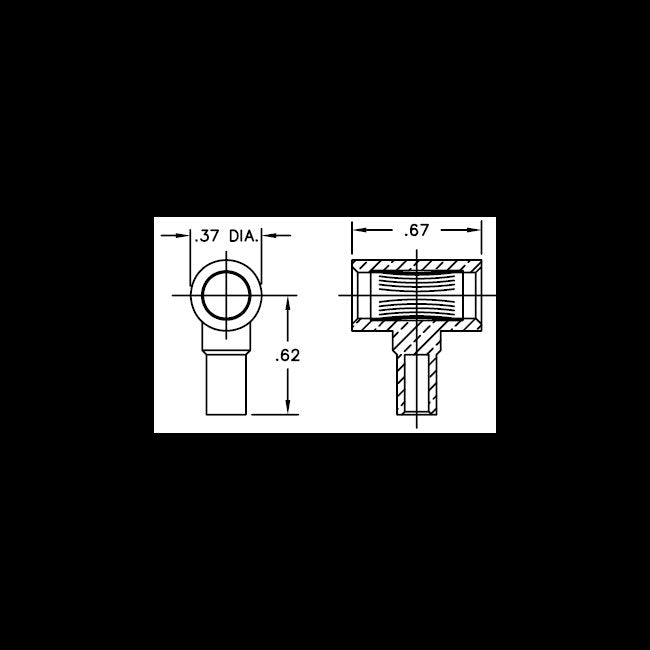

Specifications Size
5.5 mm | 0.217 in
Specifications Wirecable Material
Assemblies supplied with wire are terminated with #12; AWG (19/25; SPC conductor with silicone insulation rated for 20 KVDC (0.205 dia.) 1 REF. connectronics part no . 066-035-01.
