5/8" 316-NM Stainless Steel Anchor Shackle with Oversized Bolt

5/8" 316-NM Stainless Steel Anchor Shackle with Oversized Bolt

SKU:WIR-ddfa4a

Premium 5/8" 316-NM Stainless Steel Anchor Shackle for heavy-duty lifting and towing. Drop forged, 4,000 lb WLL, meets federal standards.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

5/8" 316-NM Stainless Steel Anchor Shackle with Oversized Bolt

5/8" 316-NM Stainless Steel Anchor Shackle with Oversized Bolt

$24.99

Quantity: 1

Claim Your Seller Account

5/8" 316-NM Stainless Steel Anchor Shackle with Oversized Bolt

5/8" 316-NM Stainless Steel Anchor Shackle with Oversized Bolt

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

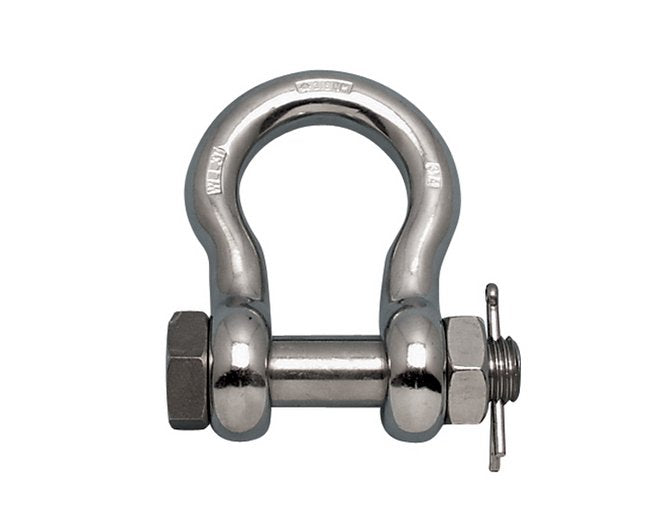

The 5/8-inch Size A 316-NM Stainless Steel Anchor Shackle with Oversized Bolt is a premium-grade shackle designed for heavy-duty lifting and towing applications. This shackle is drop-forged from high-quality 316-NM stainless steel, ensuring superior strength and durability. With a working load limit of 4,000 lbs, this anchor shackle is marked to the nearest fractional ton, meeting federal specification RR-C-271F, type IVA, class 3 standards. Its oversized bolt provides enhanced safety and secure connections, making it a reliable choice for anchor applications.

Product Specifications

Note 0
I/A/W federal. Specification RR-C-271F, type IVA, class 3, except 316 stainless. Marked to the nearest fractional ton.

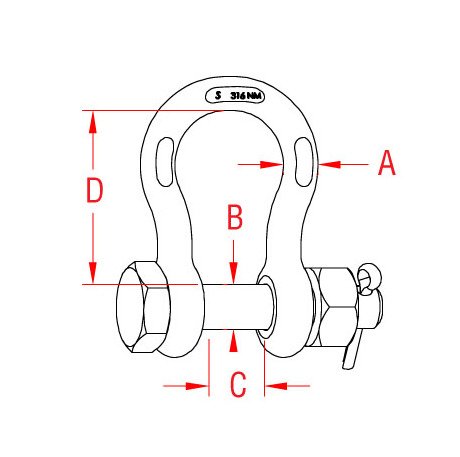

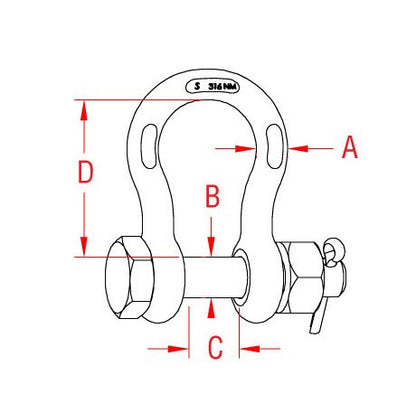

Specifications Applications
Anchor
Specifications C
1.02 "
Specifications D
2.41 "
Specifications Dimension B
0.75 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size A
5/8 "
Specifications Weight
1.64 lb
Specifications Wll
4,000 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
