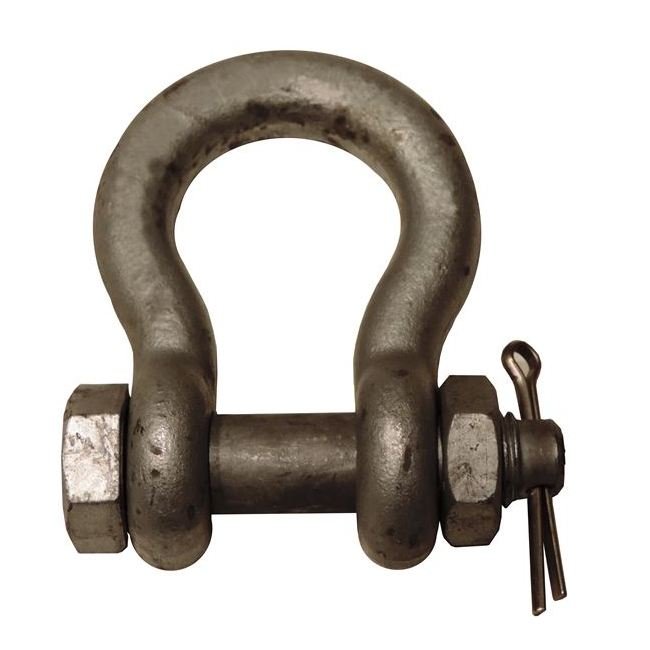

5/8 Bolt Type Anchor Shackles Hot Dip Galvanized Drop Forged

5/8 Bolt Type Anchor Shackles Hot Dip Galvanized Drop Forged

SKU:WIR-850dab

Heavy-duty 5/8 Bolt Type Anchor Shackles for lifting & towing applications, with 3.25 Ton WLL & hot dip galvanized finish.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

5/8 Bolt Type Anchor Shackles Hot Dip Galvanized Drop Forged

5/8 Bolt Type Anchor Shackles Hot Dip Galvanized Drop Forged

$29.99

Quantity: 1

Claim Your Seller Account

5/8 Bolt Type Anchor Shackles Hot Dip Galvanized Drop Forged

5/8 Bolt Type Anchor Shackles Hot Dip Galvanized Drop Forged

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 5/8 Bolt Type Anchor Shackles are designed to meet the rigorous demands of lifting and towing operations. Conforming to Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3, these shackles are quenched and tempered with alloy pin for enhanced durability. With a 3.25 Ton Working Load Limit, these shackles provide a reliable lifting solution for various applications. The proof load is 2.2 times the working load limit and the ultimate load is 6 times the working load limit. Ideal for wire rope loops, these shackles offer exceptional strength and performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

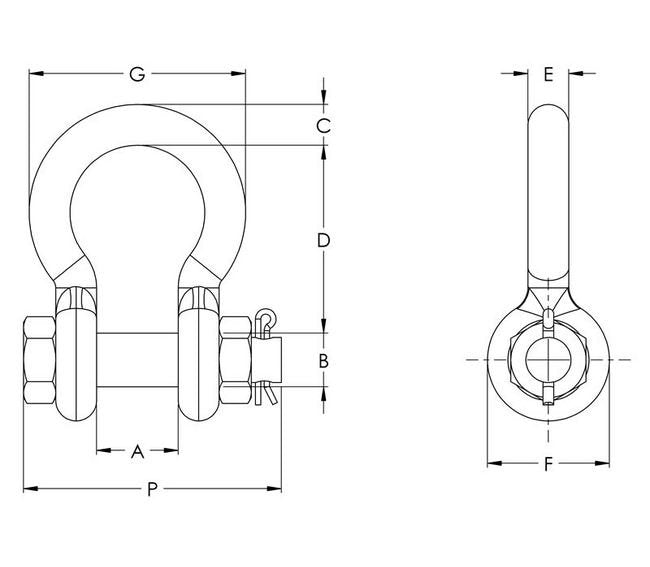

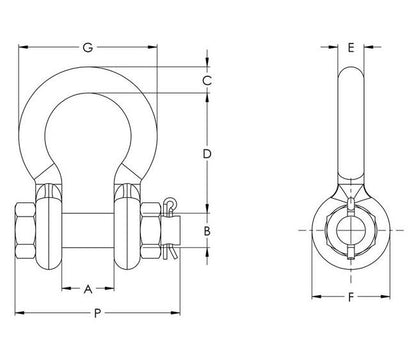

Product Specifications

Specifications A In
1.06
Specifications B In
0.75
Specifications Cross Reference
SAS58
Specifications C In
0.69
Specifications D In
2.38
Specifications E In
0.63
Specifications F In
1.5
Specifications G In
2.94
Specifications Nominal Size In
5/8
Specifications P In
3.53
Specifications Weight Lbs
1.68
Specifications Wll Tons
3.25
CAGE
0T9L4
NAICS
332722
PSC
5306
