5/8" Bolt Type Galvanized Shackles - Federal Spec RR-C-271D Compliant
5/8" Bolt Type Galvanized Shackles - Federal Spec RR-C-271D Compliant
SKU:WIR-e406bd
Heavy-duty 5/8" Bolt Type Galvanized Shackles conforming to Federal Spec RR-C-271D. Perfect for lifting and towing applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
5/8" Bolt Type Galvanized Shackles - Federal Spec RR-C-271D Compliant
$24.99
Quantity: 1
Claim Your Seller Account
5/8" Bolt Type Galvanized Shackles - Federal Spec RR-C-271D Compliant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

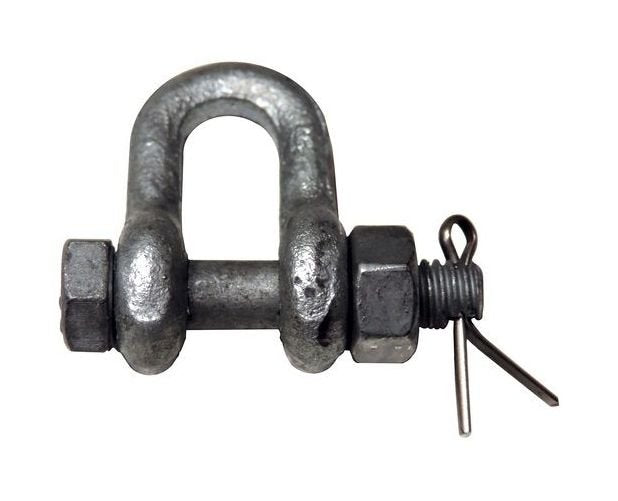

Meet your lifting and towing needs with our 5/8" Bolt Type Shackles. These shackles are hot dip galvanized and drop forged, conforming to Federal Specification RR-C-271D, Type IVA/IVB. With a working load limit of 3.25 tons and a high proof load and ultimate load, these shackles are durable and reliable for heavy-duty applications. The alloy pin, quenched, and tempered construction ensures superior strength and safety.

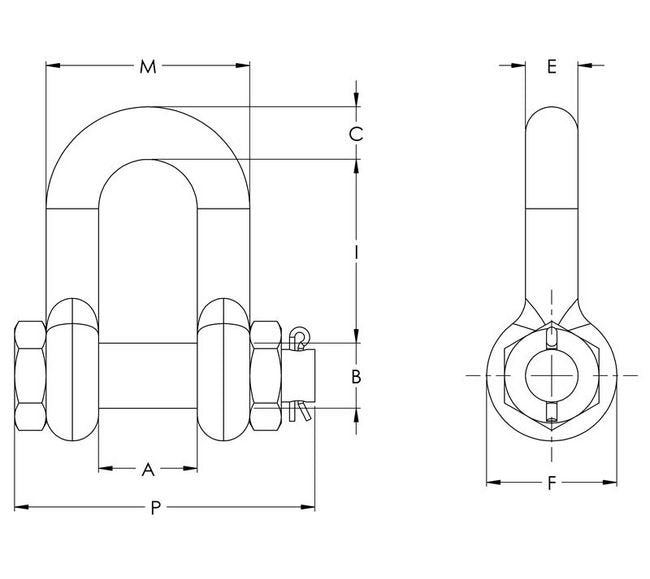

Product Specifications
Specifications A In
1.06
Specifications B In
0.75
Specifications C In
0.69
Specifications D In
2.38
Specifications E In
0.63
Specifications F In
1.5
Specifications I In
2
Specifications M In
2.31
Specifications Nominal Size In
5/8
Specifications P In
3.53
Specifications Weight Lbs
1.47
Specifications Wll Tons
3.25
CAGE
0T9L4
NAICS
332722
PSC
5306
