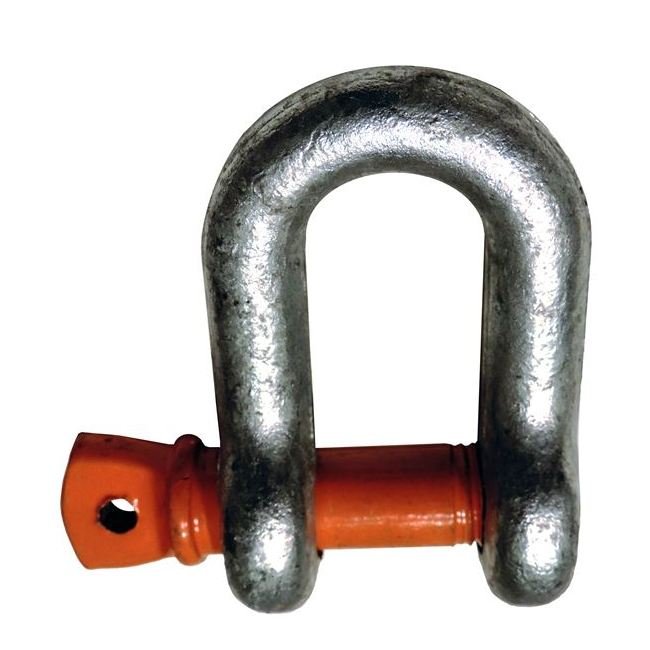

5/8" Chain Shackles Screw Pin Galvanized Drop Forged

5/8" Chain Shackles Screw Pin Galvanized Drop Forged

SKU:WIR-e4d1f1

High-quality 5/8" Chain Shackles Screw Pin for lifting and towing applications. Complies with Federal Specification RR-C-271D.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

5/8" Chain Shackles Screw Pin Galvanized Drop Forged

5/8" Chain Shackles Screw Pin Galvanized Drop Forged

$29.99

Quantity: 1

Claim Your Seller Account

5/8" Chain Shackles Screw Pin Galvanized Drop Forged

5/8" Chain Shackles Screw Pin Galvanized Drop Forged

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 5/8" Chain Shackles Screw Pin Galvanized Drop Forged is a top-quality shackle that conforms to Federal Specification RR-C-271D, Type IVB, Grade A, Class 2. This shackle has an ultimate load capacity that is 6 times its working load limit, ensuring superior strength and safety. With features like quenched and tempered alloy pin, a proof load of 2.2 times the working load limit, and a range of precise dimensions, this shackle is ideal for lifting and towing applications.

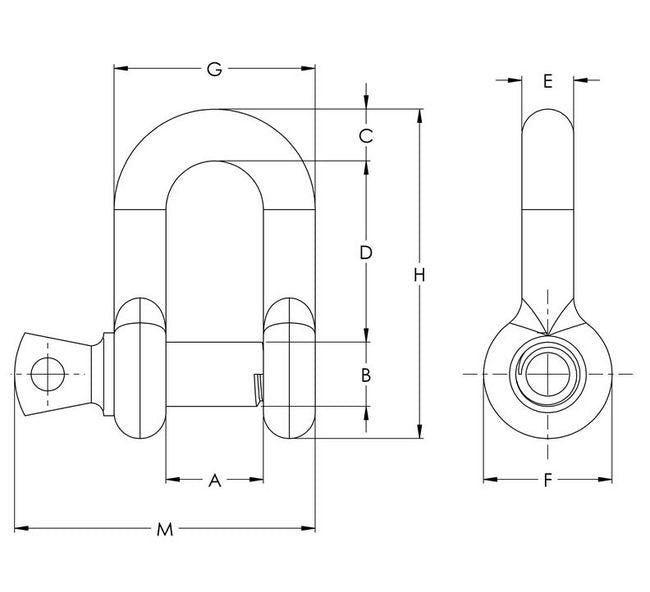

Product Specifications

Specifications A In
1.06
Specifications B In
0.75
Specifications C In
0.62
Specifications D In
2
Specifications E In
0.63
Specifications F In
1.5
Specifications G In
2.31
Specifications H In
3.75
Specifications M In
3.34
Specifications Nominal Size In
5/8
Specifications Weight Lbs
1.25
Specifications Wll Tons
3.25
CAGE
0T9L4
NAICS
332999
PSC
5340
