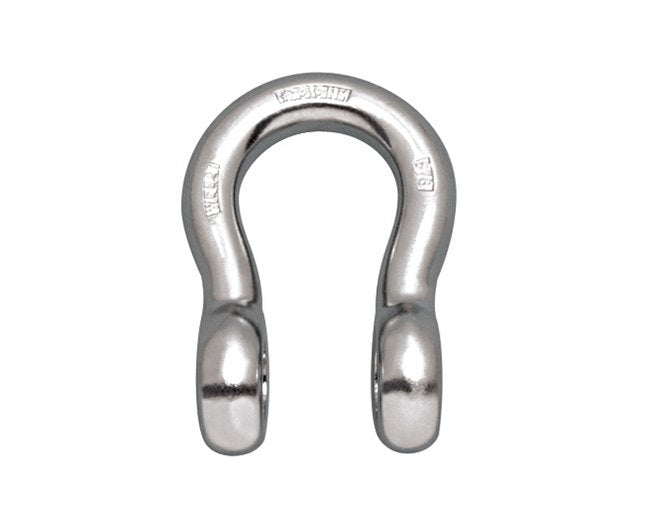

5/8 Inch 316-NM Stainless Steel Anchor Shackle

Name: 5/8 Inch 316-NM Stainless Steel Anchor Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-111144
Price: 34.99 USD
Availability: OutOfStock

SKU:WIR-111144

High-strength 316-NM stainless steel shackle for anchoring applications, load rated up to 4,000 lb.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 5/8 Inch 316-NM Stainless Steel Anchor Shackle Body is a reliable and durable hardware essential for anchoring applications. Constructed from high-quality 316-NM stainless steel, this unthreaded shackle body is drop forged and load rated for up to 4,000 lb. Its superior strength and corrosion resistance make it ideal for marine, construction, and industrial use. Marked to the nearest fractional ton, this shackle body ensures precision and safety in securing heavy loads.

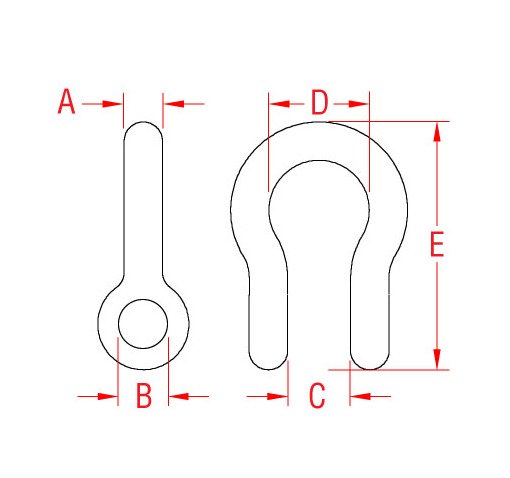

Product Specifications

Note 0

Unthreaded shackle body. Marked to the nearest fractional ton.

Specifications Applications

Anchor

Specifications C

1.06 "

Specifications D

1.69 "

Specifications Dimension B

0.77 "

Specifications E

4.19 "

Specifications Key Features

Drop Forged | Import | Load Rated

Specifications Material

316-NM Stainless Steel

Specifications Size A

5/8 "

Specifications Weight

0.88 lb

Specifications Wll

4,000 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

5/8 Inch 316-NM Stainless Steel Anchor Shackle
