5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Round Pin

5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Round Pin

SKU:WIR-6518b9

Premium 5/8" 316-NM Stainless Steel Chain Shackle with 4,000 lb WLL, compliant with federal standards.

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Round Pin

5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Round Pin

$34.99

Quantity: 1

Claim Your Seller Account

5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Round Pin

5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Round Pin

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

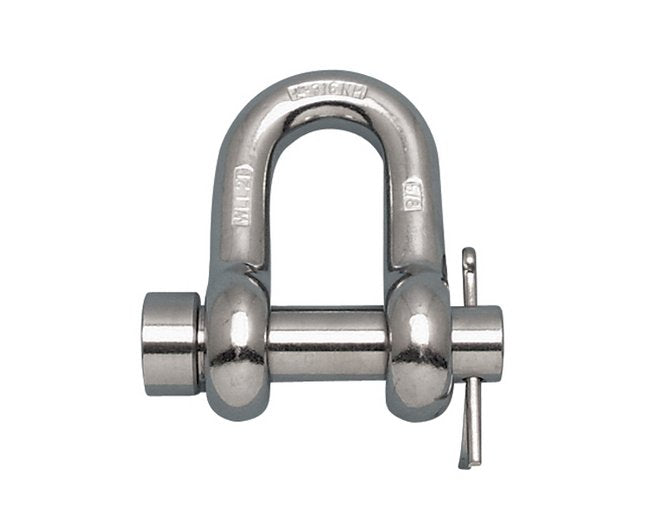

The 5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Round Pin is a durable and reliable option for various chain applications. Constructed from premium 316-NM stainless steel, this shackle is drop forged and import-rated, ensuring high performance and load capacity. With a working load limit of 4,000 lb, this shackle is compliant with federal specification RR-C-271F, type IVB, class 1 standards. Marked to the nearest fractional ton, it meets stringent quality requirements, making it ideal for both consumer and institutional use.

Product Specifications

Note 0
I/A/W federal. Specification RR-C-271F, type IVB, class 1, (except 316 stainless steel). Marked to the nearest fractional ton.

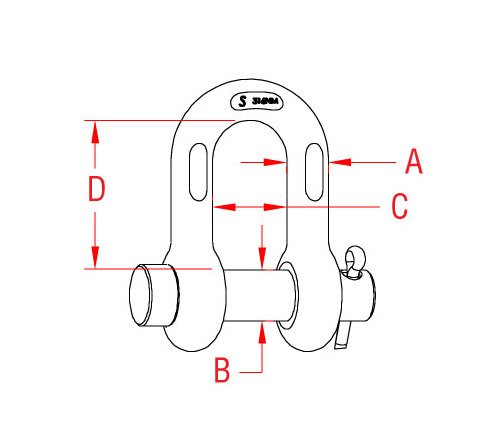

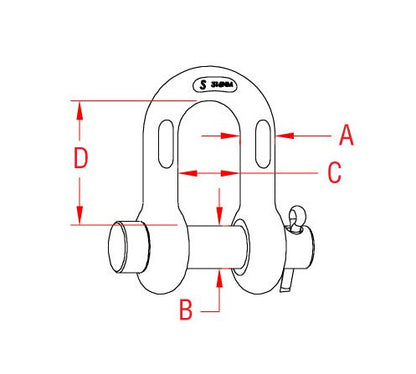

Specifications Applications
Chain
Specifications C
1.05 "
Specifications D
1.94 "
Specifications Dimension B
0.75 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size A
5/8 "
Specifications Weight
1.70 lb
Specifications Wll
4,000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
