5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin

5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin

SKU:WIR-ffbc05

Explore our 5/8 Inch Stainless Steel Chain Shackle with Oversized Screw Pin for durable and reliable performance in heavy-duty chain applications.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin

5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin

$39.99

Quantity: 1

Claim Your Seller Account

5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin

5/8 Inch 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

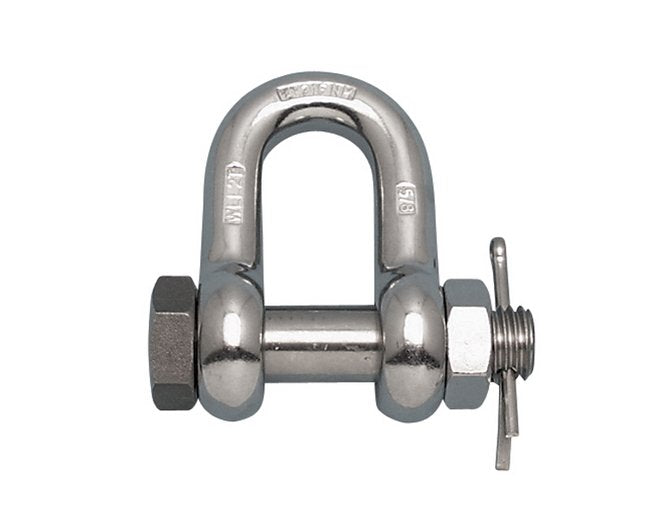

The 5/8 Inch Size A 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin is a premium-grade shackle designed for heavy-duty chain applications. Crafted from durable 316-NM stainless steel, this shackle is drop forged and load rated for up to 4,000 lbs, ensuring reliable performance in demanding environments. Compliant with federal specification RR-C-271F, type IVB, class 2 standards (except 316 stainless steel), and marked to the nearest fractional ton, this shackle guarantees both quality and precision for various industrial applications.

Product Specifications

Note 0
I/A/W federal. Specification RR-C-271F, type IVB, class 2, (except 316 stainless steel). Marked to the nearest fractional ton.

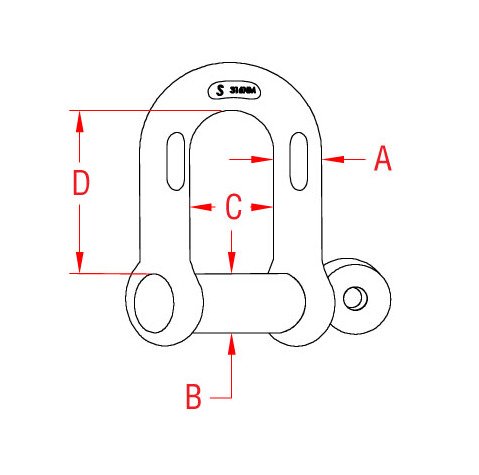

Specifications Applications
Chain
Specifications C
1.05 "
Specifications D
1.94 "
Specifications Dimension B
0.75 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size A
5/8 "
Specifications Weight
1.70 lb
Specifications Wll
4,000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
