5/8 Inch 316-NM Stainless Steel US Shackle Pin

Name: 5/8 Inch 316-NM Stainless Steel US Shackle Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-26d0b8
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-26d0b8

High-quality 5/8 Inch precision-made stainless steel shackle pin, load-rated for 4,000 lb. Made in the USA.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

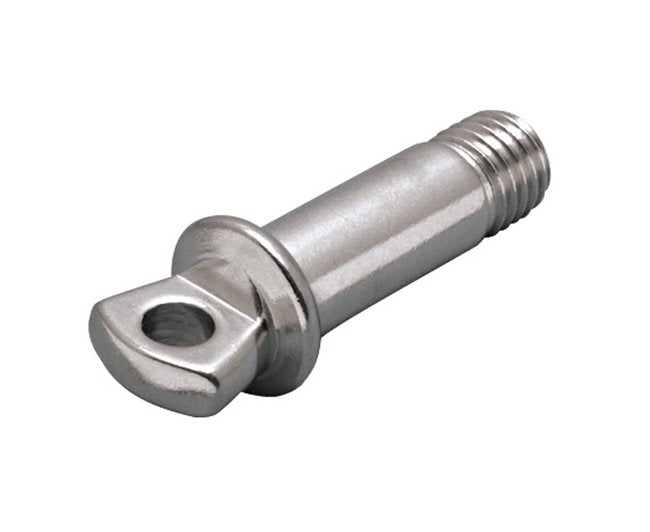

The 5/8 Inch 316-NM Stainless Steel US Shackle Pin is a precision-machined replacement pin that ensures secure connections in various applications. Made in the USA with high-quality 316-NM stainless steel, it is load-rated for up to 4,000 lb, providing reliability and durability. This pin is compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS), offering versatility and easy integration into existing hardware setups.

Product Specifications

Note 0

Replacement pin. Compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS).

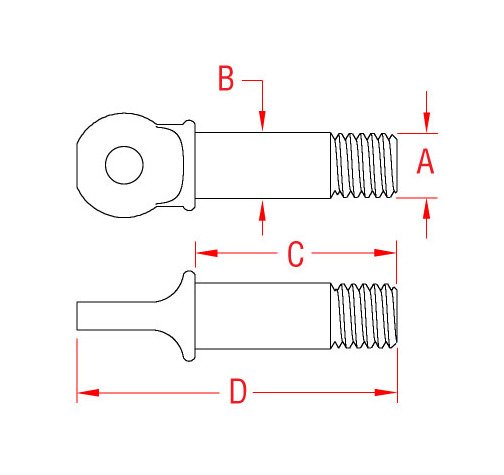

Specifications C

2.33 "

Specifications D

3.40 "

Specifications Dimension A

3/4 in.-10

Specifications Dimension B

0.75 "

Specifications Key Features

Load Rated | Made in USA | Precision Machined

Specifications Material

316-NM Stainless Steel

Specifications Size

5/8 "

Specifications Weight

0.41 lb

Specifications Wll

4,000 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

5/8 Inch 316-NM Stainless Steel US Shackle Pin
