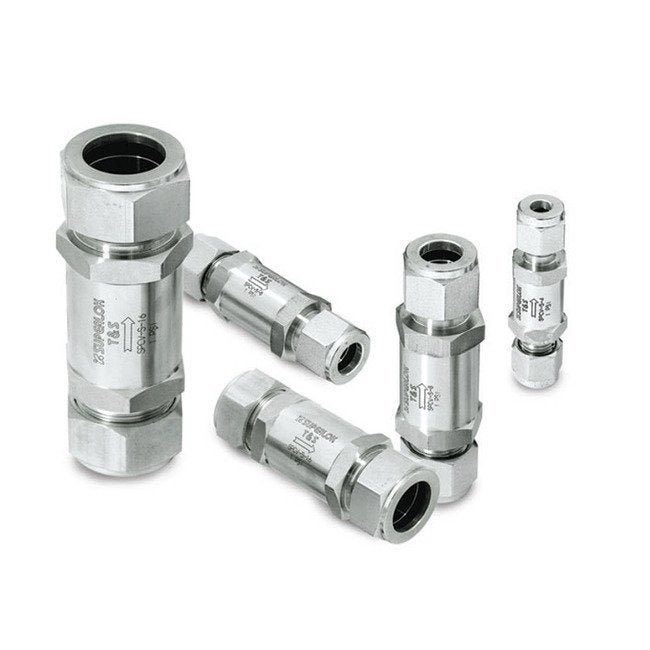

5/8 Inch SUPERLOK® SPCV Series Check Valve
5/8 Inch SUPERLOK® SPCV Series Check Valve
SKU:SPC-6f6a33
High-performance 5/8 Inch SUPERLOK® Check Valve for industrial use with precise cracking pressure and versatile end connections.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
5/8 Inch SUPERLOK® SPCV Series Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
5/8 Inch SUPERLOK® SPCV Series Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5/8 Inch SUPERLOK® SPCV Series Check Valve is designed for precision and reliability in industrial applications. With a Pressure Rating of 0 to 3000 psig and a Temperature Rating of 375°F, this valve ensures optimal performance under varying conditions. Made of high-quality materials like 316 Stainless Steel and Brass, and featuring a variety of end connections, this valve guarantees longevity and versatility. Each valve undergoes rigorous testing to validate cracking pressure and reseal performance, offering peace of mind to institutional buyers.
Product Specifications
Features Features
Fixed cracking pressure.Variety of end connections.Each and every valves are tested for cracking pressure and reseal performance at the factory.
Note Note

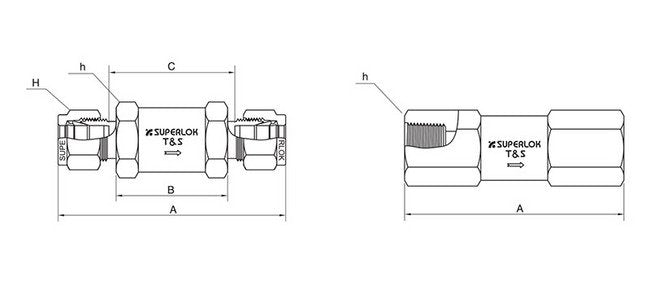

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
91.68 mm
Technical Specs Dimension B
48.0 mm
Technical Specs Dimension C
42.8 mm
Technical Specs Dimension H
25.40 mm
Technical Specs End Connections
5/8 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
2.6
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
0 to 3000 psig
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating With Fluorocarbon Fkm O Ring
375 ºF | 191 ºC
