5/8 Inch T-316 Stainless Steel Bolt Pin Anchor Shackle

5/8 Inch T-316 Stainless Steel Bolt Pin Anchor Shackle

SKU:WIR-33a5e9

High-quality 5/8" T-316 Stainless Steel Anchor Shackle with 4,000 lb WLL & federal spec compliance

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

5/8 Inch T-316 Stainless Steel Bolt Pin Anchor Shackle

5/8 Inch T-316 Stainless Steel Bolt Pin Anchor Shackle

$29.99

Quantity: 1

Claim Your Seller Account

5/8 Inch T-316 Stainless Steel Bolt Pin Anchor Shackle

5/8 Inch T-316 Stainless Steel Bolt Pin Anchor Shackle

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

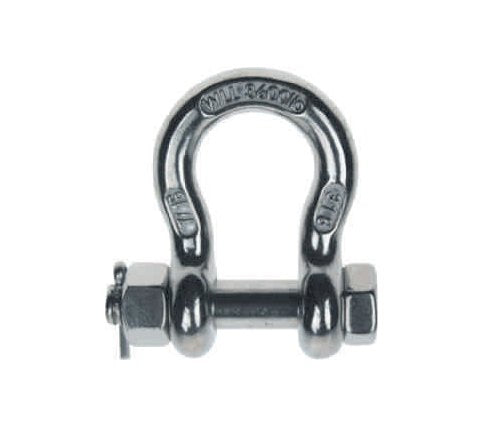

The 5/8-inch T-316 Stainless Steel Precision Cast Load Rated Bolt Pin Anchor Shackle is a durable and versatile hardware essential for various applications. Crafted from high-grade T-316 stainless steel, it provides exceptional strength and corrosion resistance. With a Working Load Limit of 4,000 lb and dimensions meeting federal specifications RR-C-271D, Type IV A, Class 3, this anchor shackle ensures reliable performance and safety. Featuring a 4x breaking strength compared to WLL and a 1.5x proof test load, it meets stringent industry standards for quality and durability.

Product Specifications

Note Note
Dimensions meet federal. Specification: RR-C-271D, Type IV A, Class 3Breaking strength is 4 times of the WLL; Proof test load is 1.5 times of the WLL.

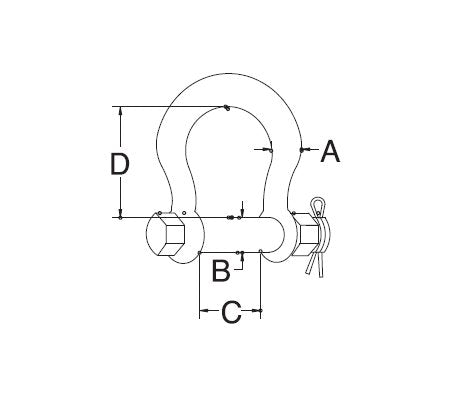

Specifications Dimension A
5/8 "
Specifications Dimension B
3/4 "
Specifications Dimension C
1-1/16 "
Specifications Dimension D
2-5/16 "
Specifications Material
T-316 Stainless Steel
Specifications Shackle Type
Anchor
Specifications Weight
1.30 lb
Specifications Wll
4,000 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
