5.9V DC Output Switch Mode Power Supply with Interchangeable Plug

Name: 5.9V DC Output Switch Mode Power Supply with Interchangeable Plug
Brand: Triad Magnetics
SKU: WAL-eb4d11
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-eb4d11

Reliable 5.9V DC Output Switch Mode Power Supply with Interchangeable Plugs for versatile use.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

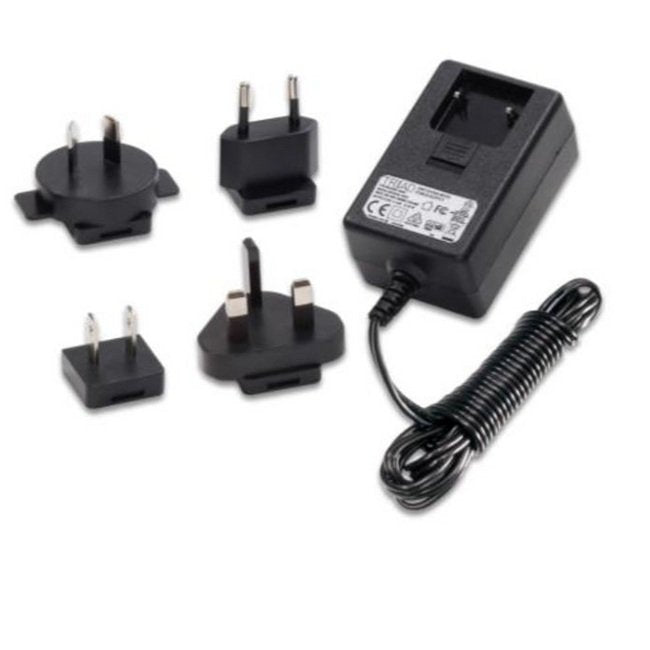

Get reliable power supply with this 5.9V DC Output Switch Mode Power Supply. Featuring interchangeable input plugs and Level VI Efficiency, this unit operates at 100-240V input voltage. With a positive polarity center, it meets EISA Efficiency VI standards. Dimensions: H 3.02 in, W 1.87 in, D 1.38 in. Ensure steady power with output voltage of 5.9V DC and output current of 4.0A.

Product Specifications

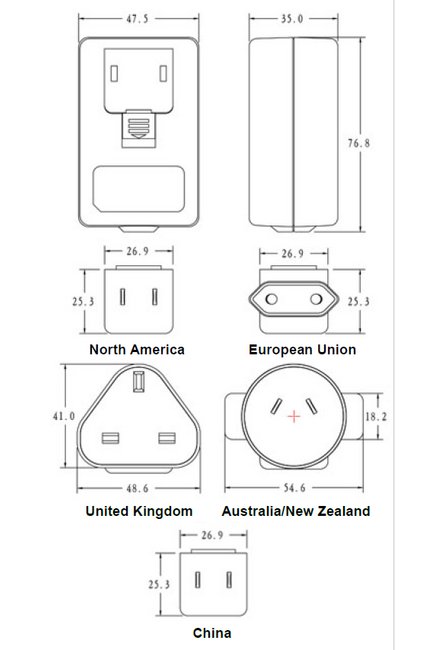

Case Dimensions Depth D

1.38 in | 35.00 mm

Case Dimensions Height H

3.02 in | 76.80 mm

Case Dimensions Width W

1.87 in | 47.50 mm

Electrical Specifications At 25 Degree Celsius C Temperature Inp

50 to 60 Hz

Electrical Specifications At 25 Degree Celsius C Temperature Out

4.0 A

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Polarity Center

Positive

Specifications Type

Switchmode

5.9V DC Output Switch Mode Power Supply with Interchangeable Plug
