5.9V DC Wall Plug-In Switch Mode Power Supply

Name: 5.9V DC Wall Plug-In Switch Mode Power Supply
Brand: Triad Magnetics
SKU: WAL-06aab8
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-06aab8

Get reliable power with the 5.9V DC Wall Plug-In Supply. Efficient, interchangeable plugs, and compact design.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

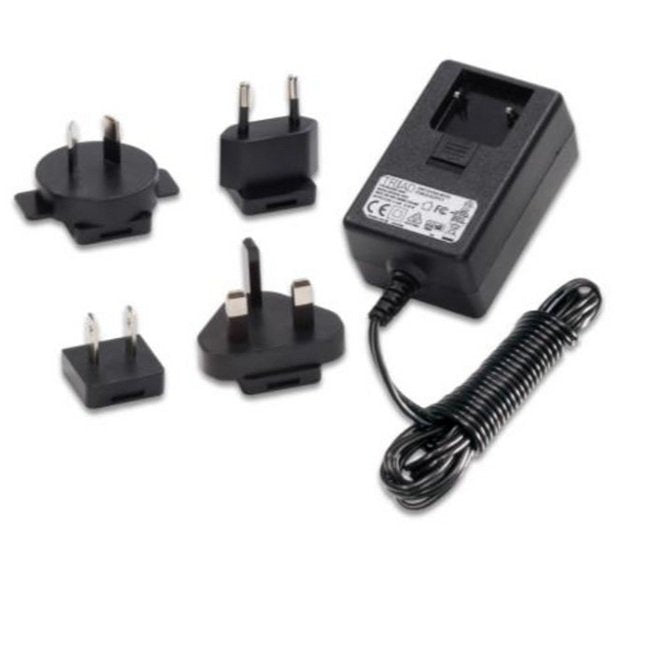

The 5.9V DC Wall Plug-In Switch Mode Power Supply is designed for seamless compatibility with a wide range of input voltages from 100V to 240V, offering a reliable and efficient power solution. Featuring a Negative Polarity Center and interchangeableness of input plugs, this power supply delivers a consistent output voltage of 5.9V at 4.0A. With Level VI Efficiency and a compact design, this power supply combines performance and convenience in a single package, making it ideal for various applications.

Product Specifications

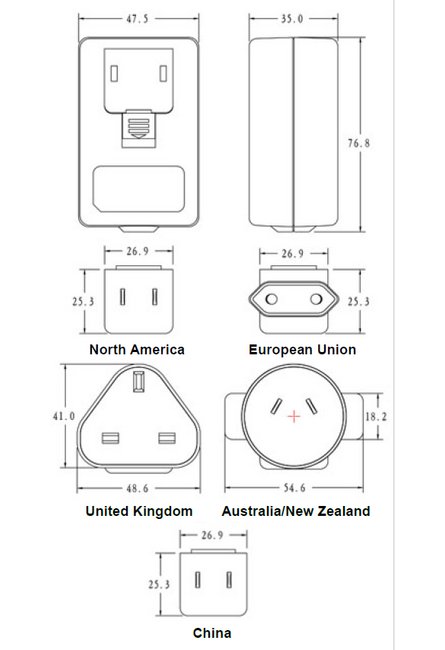

Case Dimensions Depth D

1.38 in | 35.00 mm

Case Dimensions Height H

3.02 in | 76.80 mm

Case Dimensions Width W

1.87 in | 47.50 mm

Electrical Specifications At 25 Degree Celsius C Temperature Inp

50 to 60 Hz

Electrical Specifications At 25 Degree Celsius C Temperature Out

4.0 A

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Polarity Center

Negative

Specifications Type

Switchmode

5.9V DC Wall Plug-In Switch Mode Power Supply
