5-Contact MIL-C-55116 Audio Jack
5-Contact MIL-C-55116 Audio Jack
SKU:M55-8438c7
High-performance MIL-C-55116 Audio Jack for rugged applications. Stainless steel shell, gold-plated brass contacts, -55 to 85 °C temperature range, MIL-spec compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
5-Contact MIL-C-55116 Audio Jack
$39.99
Quantity: 1
Claim Your Seller Account
5-Contact MIL-C-55116 Audio Jack
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

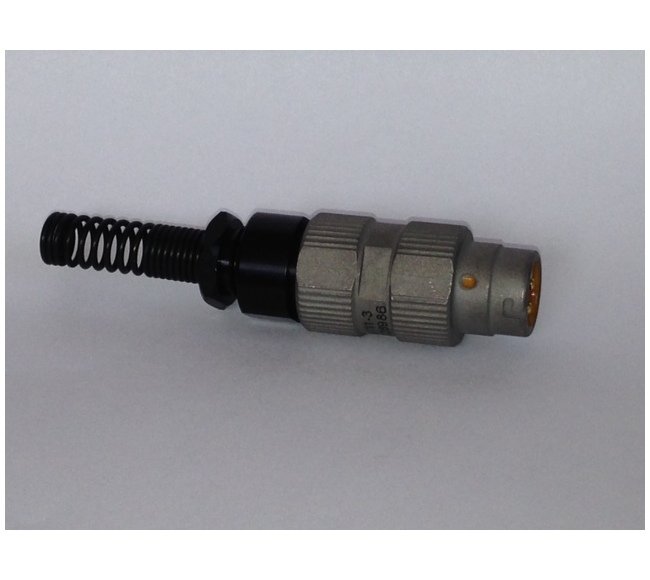

The 5-Contact MIL-C-55116 Audio Jack is a high-performance receptacle connector designed for rugged applications. With a shell made of stainless steel and gold-plated brass contact material, this jack ensures secure connections and durability. It features solder cup spring contact types, panel mount strain relief, and can withstand extreme temperatures from -55 to 85 °C. Meeting MIL-C-55116 specifications, this connector is ideal for government, military, and industrial use due to its bayonet coupling, 3000 mating cycles, and compliance with rigorous standards.
Product Specifications
Specifications Alternate Pn
M55116/9 | U-183 Type
Specifications Connector Style
Receptacle
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Solder Cup Spring
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
5
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Strain Relief
Panel Mount
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
