5 HP Gasoline Engine Self-Priming Diaphragm Pump

5 HP Gasoline Engine Self-Priming Diaphragm Pump

PRO-c57aa2

Powerful 5 HP Gasoline Engine Diaphragm Pump for efficient and reliable pumping of mud, slurry, and sewage. Self-primes up to 25 feet, handling solids up to 1-5/8".

$1,349.99
$1,349.99
Sale

Initiate Order

5 HP Gasoline Engine Self-Priming Diaphragm Pump

5 HP Gasoline Engine Self-Priming Diaphragm Pump

$1,349.99

Quantity: 1

Claim Your Seller Account

5 HP Gasoline Engine Self-Priming Diaphragm Pump

5 HP Gasoline Engine Self-Priming Diaphragm Pump

$1,349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

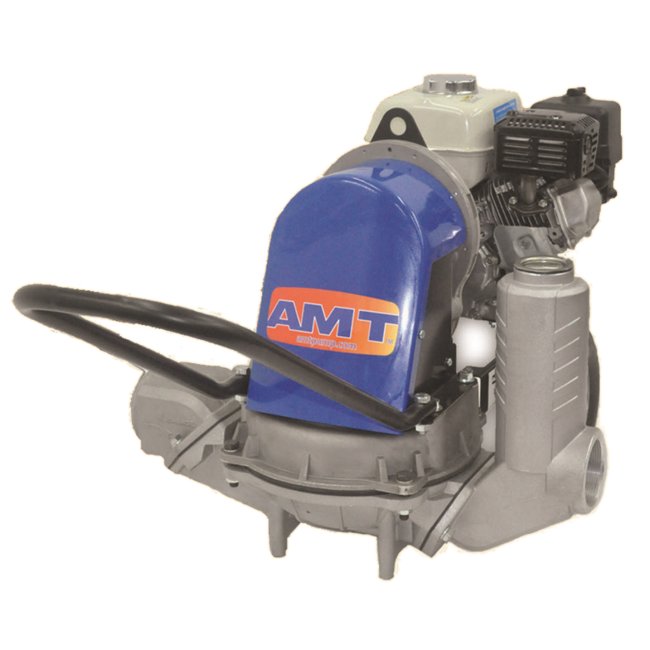

The 5 HP Gasoline Engine 3" NPT Self-Priming Diaphragm Pump by American Machine and Tool Company is a robust solution designed for pumping mud, slurry, sewage, and thick liquids. With a 2-stage transmission, it offers efficient operation, self-priming up to 25 feet, and can handle solids up to 1-5/8". Featuring a durable sand-cast aluminum construction, thermoplastic Santoprene diaphragm, and driver options including gasoline, diesel, and electric motors, this pump delivers up to 90 GPM. It is portable, easy to maintain, and ideal for various water handling applications.

Product Specifications

Curves 0

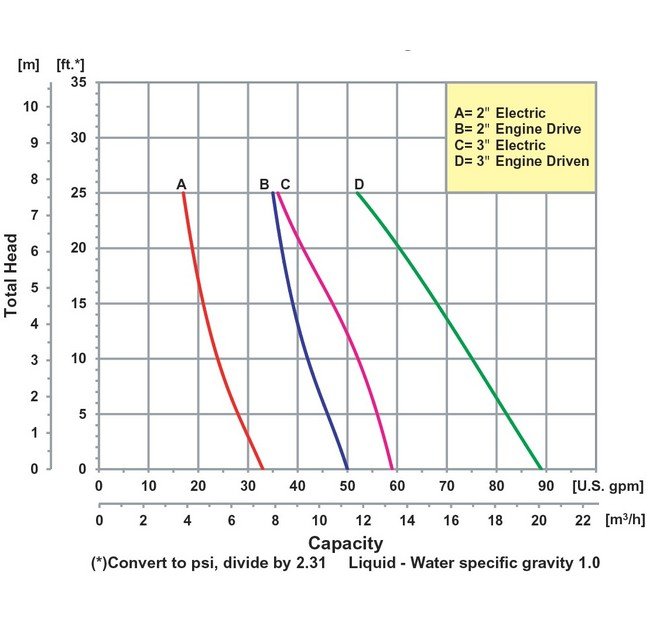

Performance Curves
Specifications 0
Sand Cast Aluminum Construction for Portability and DurabilityModular Component Design Permits Easy Maintenance and CleanoutMaximum Solids Handling up to 1-5/8 InSelf-Priming to 25 Ft. Lift90° Rotatable Base on All ModelsThermoplastic Santoprene DiaphragmDelivers up to 90 GPM
Specifications Customs Code
HTS Code 8413500050
Specifications Driver
Honda GX160 .75 Kyd Gasoline Engine
Specifications Height
24 in | 612.14 mm
Specifications Inlet Size
3" FNPT
Specifications Length
44 Inch | 111.51 Centimeter | 3.66 ft | 44 in | 1.1151 m | 1115.06 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Motor Frame
.75 Kyd
Specifications Porting Position
3" FNPT
Specifications Power
5 hp
Specifications Sku
AT337H96SP
Specifications Weight
83.91 Kilogram | 83.91 kg | 185 lbs
Specifications Width
26 Inch | 26 in | 0.6706 m | 670.56 mm
