5 HP Reward Series Reciprocating Air Compressor - Tank Mounted
5 HP Reward Series Reciprocating Air Compressor - Tank Mounted
SKU:NEW-19aebb
Powerful and reliable 5 HP reciprocating air compressor for industrial applications.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
5 HP Reward Series Reciprocating Air Compressor - Tank Mounted
$3,499.99
Quantity: 1
Claim Your Seller Account
5 HP Reward Series Reciprocating Air Compressor - Tank Mounted
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

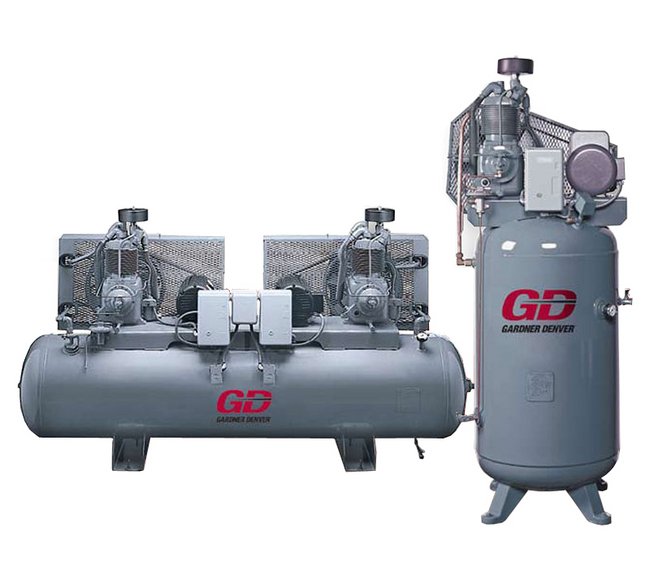

Experience exceptional compressed air performance with the 5 HP Reward Series Reciprocating Air Compressor. Designed to withstand demanding applications, this compressor features a heavy-duty two-stage pump, intercoolers, high flow disc valves, and more. With a 80-gallon tank capacity and industry certifications including CAGI and Energy Star, this compressor ensures reliable efficiency and longevity.
Product Specifications
Compressor Pump Warranty
Each new Gardner Denver™ Assembled Unit has a five (5) year warranty on the compressor pump only, against defects in materials or workmanship under normal use and service, from the date of installation or sixty-six (66) months from the date of shipment by Gardner Denver™ or a Gardner Denver™ distributor, whichever may occur first.The five-year extended warranty covers parts and labor and is prorated over the five years as follows:Year One - 100% coverageYear Two - 90% coverageYear Three - 80% coverageYear Four - 70% coverageYear Five - 60% coverageHead valves are warranted for Year One only. Gardner Denver™ makes no warranty on components and/or accessories furnished to Gardner Denver™ by third parties, such as electric motors, gasoline engines and controls. These are warranted only to the extent of the original manufacturer’s warranty to Gardner Denver™Includes a five-year warranty on the air receiver, pump and motor.
Quality Accessories At A Glance

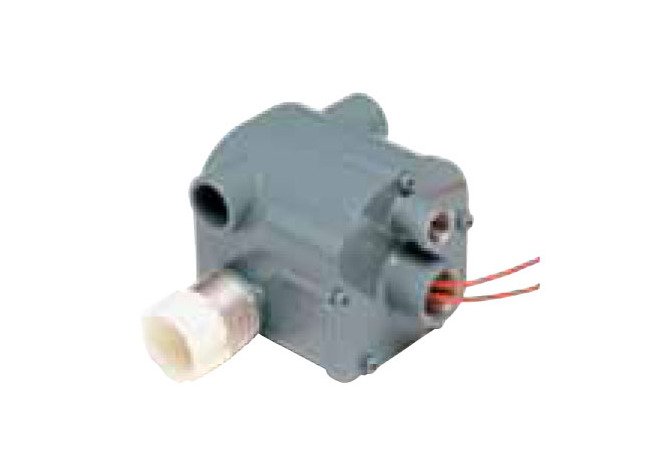

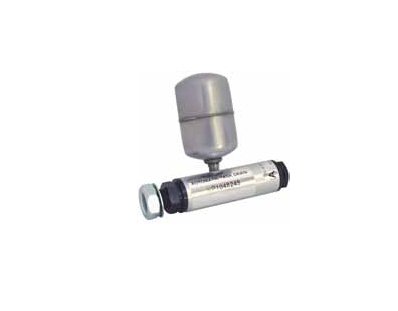

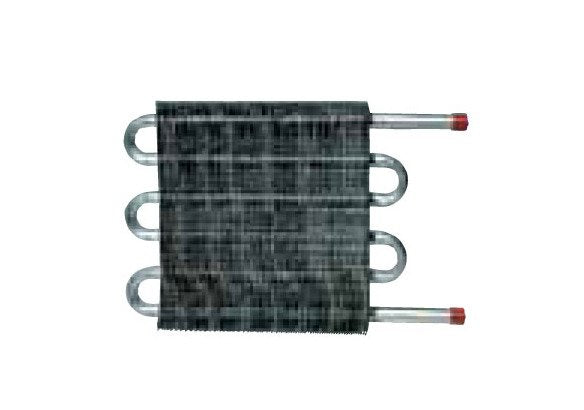

Magnetic Motor StarterFor thermal overload protection.Air-Cooled AftercoolerThe factory mounted, Heavy-Duty, air-cooled aftercooler effectively reduces up to 65% of the moisture from discharged compressed air. (select models)Automatic Tank DrainAutomatically discharges excess moisture from the receiver.Vibration Isolator PadsIsolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from any out-of-level floor situation that could cause vibration and damage.Low Oil Level MonitorLow Oil Level Monitor shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting if oil levels are not at an adequate level.Dual ControlAllows compressor to run in start/stop or continuous run mode. (select models)
Specifications Airflow Delivery At 175 Psi Pressure Rating
17.3 ft³/min
Specifications Approximate Weight
535 lb
Specifications Ca Variants
CASRSA60
Specifications Height
49 in
Specifications Industry Standardscertifications
Compressed Air and Gas Institute (CAGI) | Compressed Air Challenge™ | Energy Star Partner | ISO 9001:2008
Specifications Length
66 in
Specifications Mounting
Tank
Specifications Orientation
Horizontal
Specifications Phase
3
Specifications Power
5 hp
Specifications Pump Model
R-15B
Specifications Speed
734 rpm
Specifications Tank Capacity
80 gal
Specifications Voltage
230 V
Specifications Width
23 in
Standard Equipment Features
Heavy-Duty Two Stage, Splash Lubricated Air Compressor Pump(s)Multi-Finned CylindersIntegral Cylinder HeadIntercoolers for Cooling Between StagesReliable High Flow Disc ValvesOversized Main BearingsBalanced CrankshaftOil Level Site GlassCentrifugal Unloader for Loadless Starting0-300 psig Air Pressure GaugeBucket High Drain ValveFactory Fill with AEON™ LubricantsOSHA Approved Belt GuardASME Code Air ReceiverPressure Relief ValveService ValveDrain ValvePressure GaugeVertical or Horizontal ConfigurationsOversize Inlet Filter - SilencersMounted Magnetic StarterVibration Isolator PadsAutomatic Tank DrainLow Oil Level MonitorAir Cooled Aftercooler (select models)Dual Control (select models)
