5 HP TEFC Straight Centrifugal Pump - 1.5" x 2"
5 HP TEFC Straight Centrifugal Pump - 1.5" x 2"
SKU:PRO-f826c8
Premium 5 HP TEFC Straight Centrifugal Pump for industrial applications - Reliable, efficient, and durable.
Regular price
$1,699.99
Regular price
Sale price
$1,699.99
Unit price
per
Initiate Order
5 HP TEFC Straight Centrifugal Pump - 1.5" x 2"
$1,699.99
Quantity: 1
Claim Your Seller Account
5 HP TEFC Straight Centrifugal Pump - 1.5" x 2"
$1,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

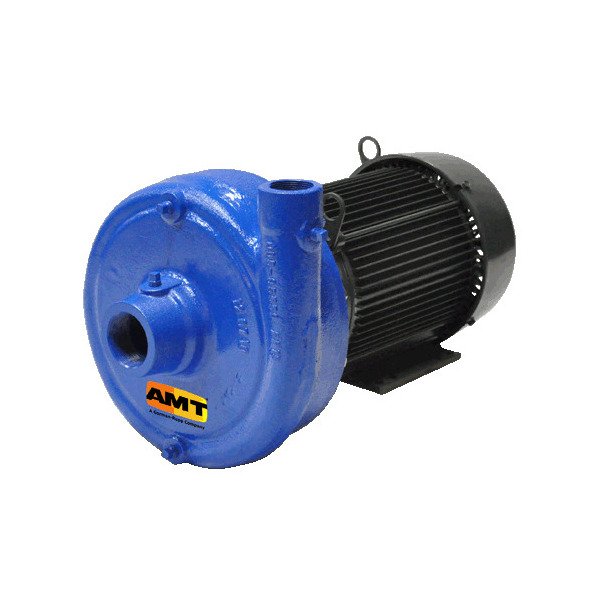

The American Machine and Tool Company presents a high-performance 1.5" x 2" NPT Cast Iron Straight Centrifugal Pump, ideal for industrial and commercial use. With a robust 5 HP TEFC motor, Viton® Silicon Carbide/Carbon Mechanical Seal, and cast iron construction, this pump ensures reliability and longevity. The pull-from-rear design allows easy servicing without disrupting piping, while the bronze shaft sleeve protects the motor shaft. Certified for nonflammable liquid compatibility, this pump meets the highest standards for efficiency and durability.
Product Specifications
Curves 0

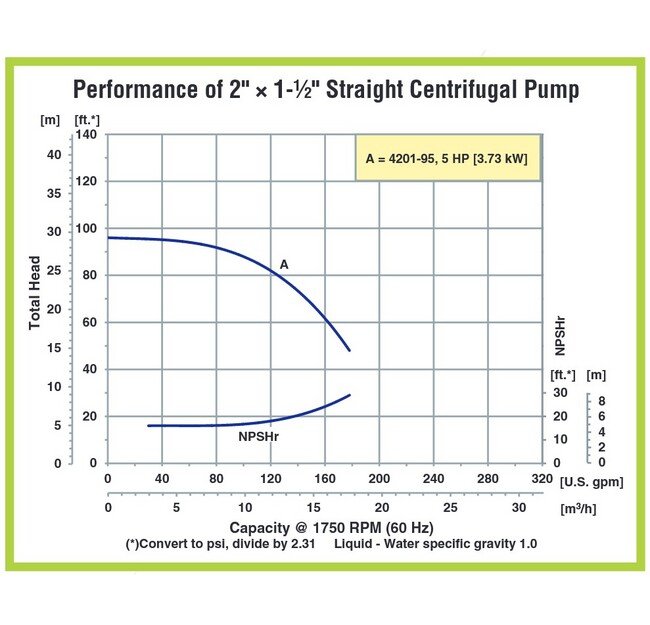

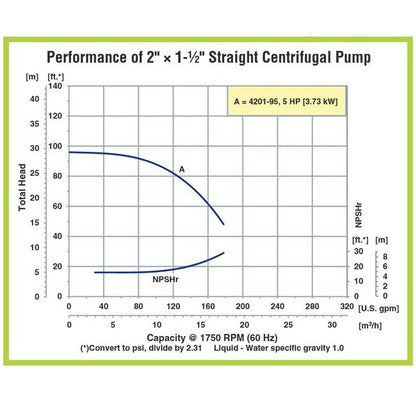

Performance Curves
Dimensions 0

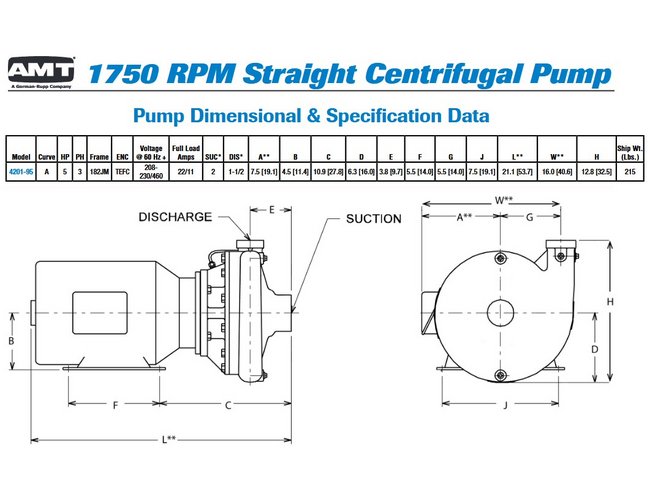

Dimensions
Specifications 0
Cast Iron ConstructionSilicon Bronze Precision Cast Dynamically Balanced ImpellerViton® Silicon Carbide/Carbon Mechanical SealBronze Case Wear Ring2" x 1.5" NPT PortsPull-From-Rear Design Permits Easy Servicing Without Disturbing Piping1/4" NPT Gauge Taps on Suction & Discharge Ports For System MonitoringBronze Shaft Sleeve to Protect Motor ShaftMaximum Casing Pressure 175 PSIMaximum Temperature 200° FIncludes Seal Flush/Air Relief ValveFront Drain PlugsTEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors
Specifications Height
13 in | 325.12 mm
Specifications Inlet Size
2 FNPT in
Specifications Length
21 Inch | 53.59 Centimeter | 1.76 ft | 21 in | 0.5359 m | 535.94 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Moc
Cast Iron
Specifications Sku
AT420195SP
Specifications Weight
97.52 Kilogram | 97.52 kg | 215 lbs
Specifications Width
16 Inch | 16 in | 0.4064 m | 406.40 mm
