5 HP TEFC Straight Centrifugal Pump - Cast Iron Construction
5 HP TEFC Straight Centrifugal Pump - Cast Iron Construction
SKU:PRO-f826c8
Durable 5 HP TEFC Centrifugal Pump, ideal for OEM, Industrial, and processing applications. Easy to service, high performance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
5 HP TEFC Straight Centrifugal Pump - Cast Iron Construction
$1,899.99
Quantity: 1
Claim Your Seller Account
5 HP TEFC Straight Centrifugal Pump - Cast Iron Construction
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5 HP TEFC Straight Centrifugal Pump with 1 1/2" x 2" NPT features durable cast iron construction, Viton® Silicon Carbide/Carbon mechanical seal, pull-from-rear design for easy servicing, and bronze shaft sleeve for motor shaft protection. Ideal for OEM, Industrial/commercial, and processing applications. Reliable, cost-effective, and low maintenance, suitable for nonflammable liquids. Front drain plugs, high temperature and pressure ratings ensure long-term performance.
Product Specifications
Curves 0

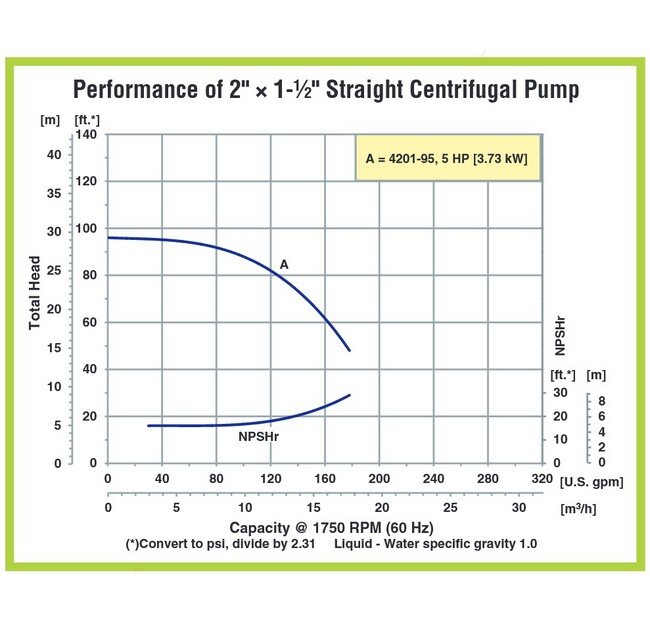

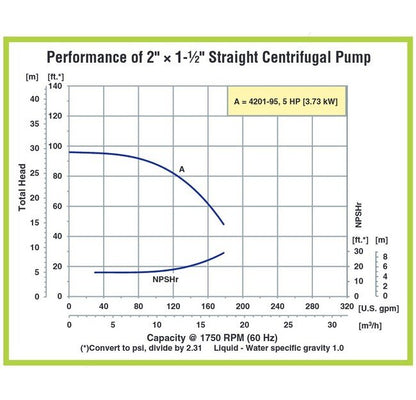

Performance Curves
Dimensions 0

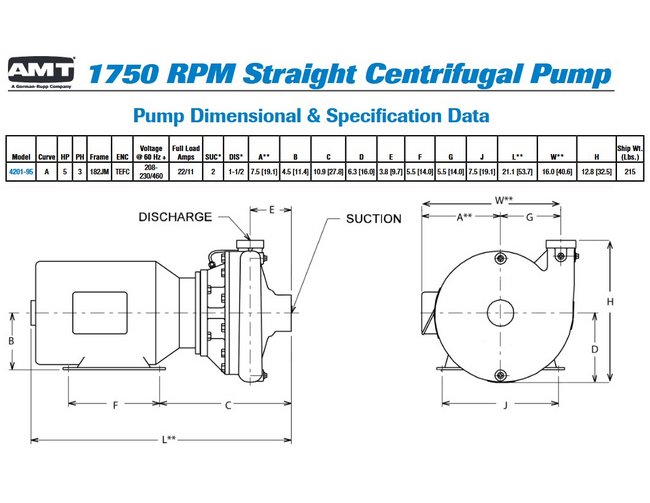

Dimensions
Specifications 0
Cast Iron ConstructionSilicon Bronze Precision Cast Dynamically Balanced ImpellerViton® Silicon Carbide/Carbon Mechanical SealBronze Case Wear Ring2" x 1.5" NPT PortsPull-From-Rear Design Permits Easy Servicing Without Disturbing Piping1/4" NPT Gauge Taps on Suction & Discharge Ports For System MonitoringBronze Shaft Sleeve to Protect Motor ShaftMaximum Casing Pressure 175 PSIMaximum Temperature 200° FIncludes Seal Flush/Air Relief ValveFront Drain PlugsTEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors
Specifications Height
13 in | 325.12 mm
Specifications Inlet Size
2 FNPT in
Specifications Length
21 Inch | 53.59 Centimeter | 1.76 ft | 21 in | 0.5359 m | 535.94 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Moc
Cast Iron
Specifications Sku
AT420195SP
Specifications Weight
97.52 Kilogram | 97.52 kg | 215 lbs
Specifications Width
16 Inch | 16 in | 0.4064 m | 406.40 mm
