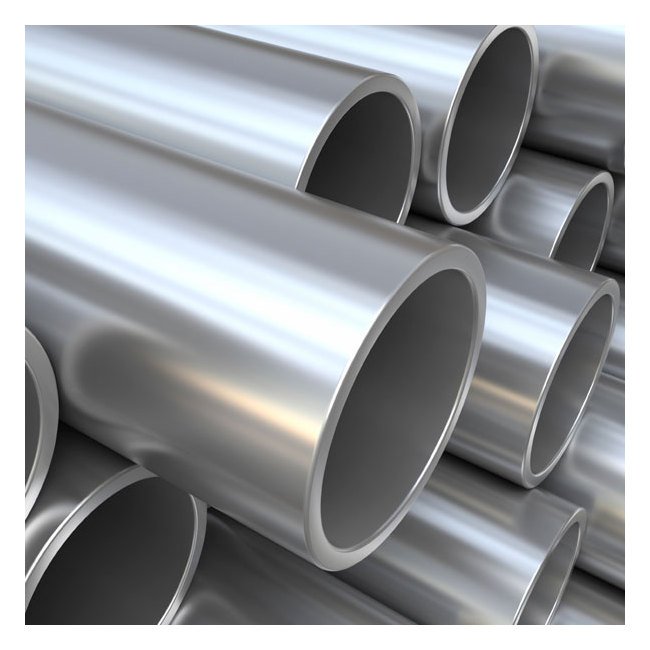

5 Inch Alloy C22 Seamless/Welded Pipe, Sch. XXH
5 Inch Alloy C22 Seamless/Welded Pipe, Sch. XXH
SKU:NIC-125f2d
5" Alloy C22 Pipe with Sch. XXH thickness - Superior corrosion resistance, ASTM compliant, ideal for various industries.
Regular price
$1,050.00
Regular price
Sale price
$1,050.00
Unit price
per
Initiate Order
5 Inch Alloy C22 Seamless/Welded Pipe, Sch. XXH
$1,050.00
Quantity: 1
Claim Your Seller Account
5 Inch Alloy C22 Seamless/Welded Pipe, Sch. XXH
$1,050.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5 Inch Alloy C22 Seamless or Welded Pipe in Sch. XXH thickness is a fully austenitic nickel-based superalloy, offering exceptional corrosion resistance and ease of forming. Also known as Inconel® 22 and Hastelloy® C22, it boasts high ductility, making cold forming effortless. With robust resistance to corrosion, pitting, crevice corrosion, and stress corrosion cracking, this pipe is ideal for industries like chemical processing, oil and gas, and more. Meeting ASTM specifications and available in various sizes, this pipe ensures reliable performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Common applications include chemical processing, paper and pulp, oil and gas, pesticide production, sour gas services, and waste incinerators. Providing considerable resistance at elevated temperatures, Inconel® 22 has been adopted for nuclear fuel reprocessing, flue gas desulfurization and seawater-based applications.With the nickel as its primary base, Inconel® 22 alloy includes a chemical composition of 20-22.5% Cr, 12.5-14.5% Mo, a maximum of 2.5% Co, 2.5-3.5% W, and 2-6% Fe. For annealing treatment, temperature ranges should remain between 2020 and 2150 ºF. Inconel® 22 is suited for applications that require superior performance at elevated temperatures and for its full spectrum of anti-corrosion characteristics.
Nickel Alloy Compositions Alloy
Alloy C22
Nickel Alloy Compositions Astm Specification
ASME Code Case 2226 | ASME Code Case N-621 | ASME SB 619/SB 775 | ASME SB 622/SB 829 | ASME SB 626/SB 751 | ASTM B 619/B 775 | ASTM B 622/B 829 | ASTM B 626/B 751 | DIN 17751 | ISO 6207
Nickel Alloy Compositions Density
8.69 g/cm³ | 0.314 lbs/in³
Specifications Material
Hastelloy®
Specifications Nominal Diameter Metric
125 mm
Specifications Nominal Diameter Standard
5 inches
Specifications Od
5.563 inches | 141.3002 mm
Specifications Shapeform
Pipe
Specifications Thickness
Sch. XXH
