5-inch Copper Nickel Inner Flanges
5-inch Copper Nickel Inner Flanges
SKU:FLA-bbb059
Upgrade your piping system with our 5-inch Copper Nickel Inner Flanges. DIN 86037 compliant for durability & performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
5-inch Copper Nickel Inner Flanges
$59.99
Quantity: 1
Claim Your Seller Account
5-inch Copper Nickel Inner Flanges
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your piping system with our 5-inch Inner Flanges, featuring a Nominal Size of 5 inches, OD of 133mm, and compliant with DIN 86037 standards. Crafted from CuNi10Fe1.6Mn, these flanges offer optimal durability. Suitable for various applications, these Inner Flanges ensure secure and efficient connections.

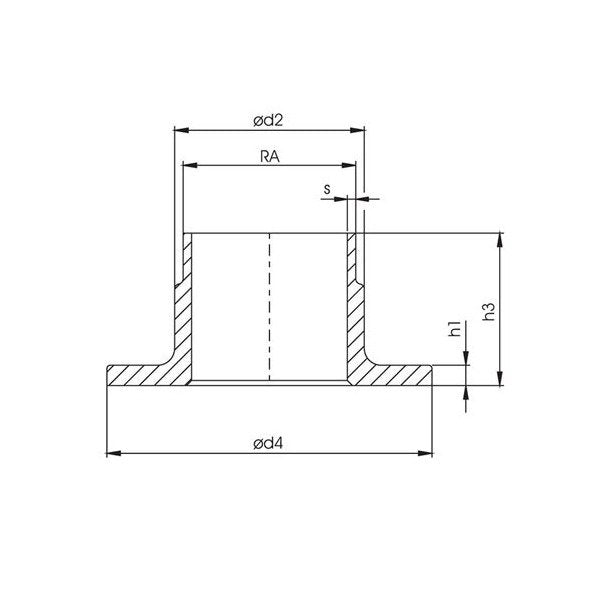

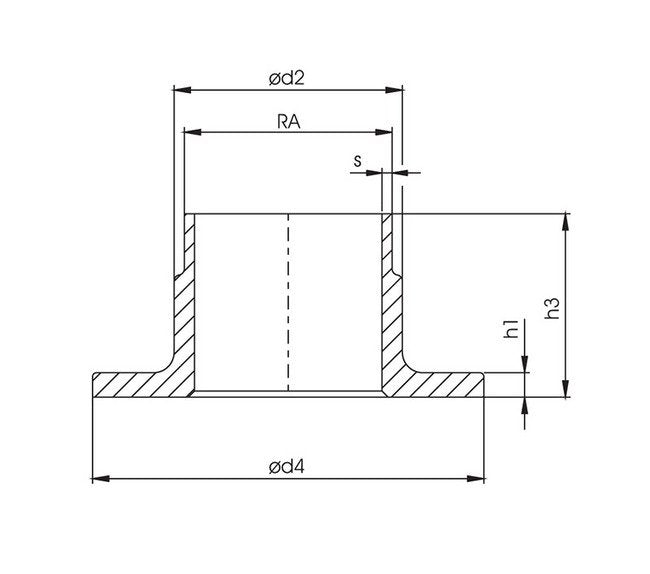

Product Specifications
Specifications Body Material
CuNi10Fe1.6Mn
Specifications D2
135 mm
Specifications D4
188 mm
Specifications H1
7 mm
Specifications H3
50 mm
Specifications Nominal Size
5 in
Specifications Norm
DIN 86037
Specifications Ra Od
133 mm
Specifications S
2.5 mm
Specifications Weight
1.50 kg
