5 Inch Galvanized Steel Wing Nut Plug for Mechanical End of Pipe Applications

Name: 5 Inch Galvanized Steel Wing Nut Plug for Mechanical End of Pipe Applications
Brand: Parker / Autoclave Engineers
SKU: HIG-194e17
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-194e17

Seal open-ended pipes efficiently with the 5 Inch Galvanized Steel Wing Nut Plug. Durable, cost-effective solution for mechanical end of pipe applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 143-3 Series 5 Inch Nominal Diameter Galvanized Steel Wing Nut Plug is a reliable solution for sealing open-ended pipes and water line stubs. Featuring a durable galvanized steel construction with SBR/Natural rubber o-ring for a secure fit, this plug offers a cost-effective way to prevent dust and debris ingress. While not pressure rated, this plug is ideal for mechanical wing nut applications, providing easy installation and dependable performance. With a nominal diameter of 5 inches and a maximum diameter of 5.3 inches, it suits various pipe sizes, meeting the needs of institutional and government buyers.

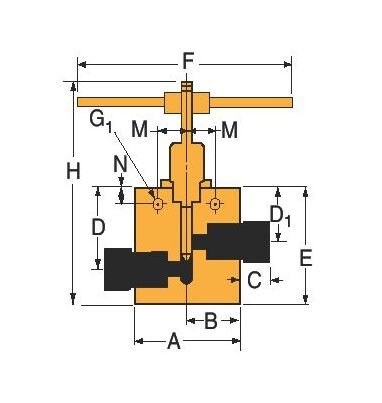

Product Specifications

Specifications A Width

5.75 in | 146.05 mm

Specifications Block Thickness

2.25 in | 57.15 mm

Specifications B Length

2.88 in | 73.03 mm

Specifications Connection Type

SF1500CX

Specifications C Length

1.00 in | 25.40 mm

Specifications D1 Height

3.75 in | 95.25 mm

Specifications D Height

5.25 in | 133.35 mm

Specifications E Height

6.38 in | 161.93 mm

Specifications F Length

23.75 in | 603.25 mm

Specifications G1 Bracket Mounting Hole Size

0.75 in | 19.05 mm

Specifications G Packing Gland Mounting Hole Drill Size

2.31 in | 58.72 mm

Specifications H Height

10.98 in | 278.79 mm

Specifications M Length

1.88 in | 47.63 mm

Specifications N Height

1.50 in | 38.10 mm

Specifications Orifice Diameter

0.937 in | 23.80 mm

Specifications Outside Diameter Tube

1-1/2 in | 38.10 mm

Specifications Pressure Rating At Room Temperature

15000 psi | 1034 bar

Specifications Rated Cv

Specifications Stem Type

REG

Specifications Tubing Engagement Depth

1.88 in | 47.6 mm

Specifications Valve Pattern

2-Way Straight
