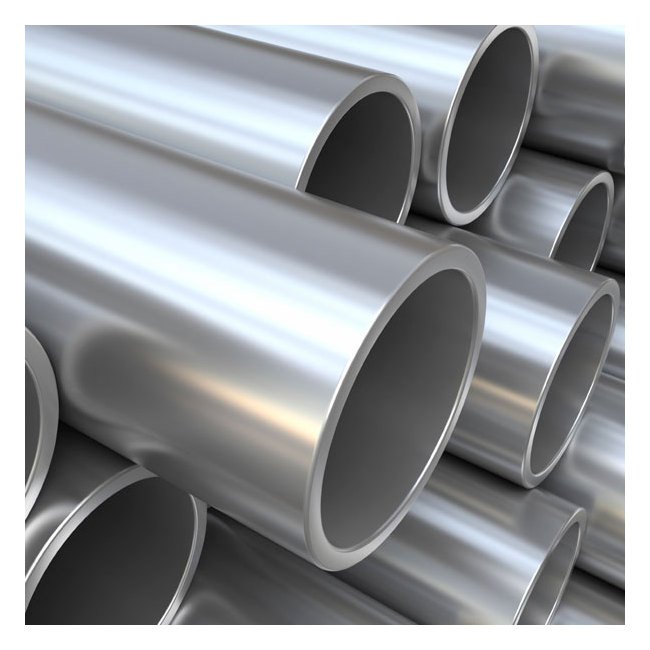

5 Inch Sch. 40 Alloy C22 Seamless/Welded Pipe - Nickel Alloy C22
5 Inch Sch. 40 Alloy C22 Seamless/Welded Pipe - Nickel Alloy C22
SKU:NIC-5baf93
Highly corrosion-resistant 5" Sch. 40 Alloy C22 Seamless/Welded Pipe for versatile industrial applications.
Regular price
$175.00
Regular price
Sale price
$175.00
Unit price
per
Initiate Order
5 Inch Sch. 40 Alloy C22 Seamless/Welded Pipe - Nickel Alloy C22
$175.00
Quantity: 1
Claim Your Seller Account
5 Inch Sch. 40 Alloy C22 Seamless/Welded Pipe - Nickel Alloy C22
$175.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5 Inch Sch. 40 Alloy C22 Seamless/Welded Pipe is a top-quality nickel-based superalloy known for its exceptional corrosion resistance and ease of forming. Also referred to as Inconel® 22 and Hastelloy® C22, this pipe offers superior ductility, making cold forming effortless. With resistance to various forms of corrosion like pitting and stress corrosion cracking, this pipe caters to industries requiring robust and versatile materials. Available in sizes ranging from 1/8" up to 26", this Alloy C22 Pipe is a reliable choice for applications in chemical processing, oil and gas, paper and pulp, and more.
Product Specifications
Additional Information Additional Information
Common applications include chemical processing, paper and pulp, oil and gas, pesticide production, sour gas services, and waste incinerators. Providing considerable resistance at elevated temperatures, Inconel® 22 has been adopted for nuclear fuel reprocessing, flue gas desulfurization and seawater-based applications.With the nickel as its primary base, Inconel® 22 alloy includes a chemical composition of 20-22.5% Cr, 12.5-14.5% Mo, a maximum of 2.5% Co, 2.5-3.5% W, and 2-6% Fe. For annealing treatment, temperature ranges should remain between 2020 and 2150 ºF. Inconel® 22 is suited for applications that require superior performance at elevated temperatures and for its full spectrum of anti-corrosion characteristics.
Nickel Alloy Compositions Alloy
Alloy C22
Nickel Alloy Compositions Astm Specification
ASME Code Case 2226 | ASME Code Case N-621 | ASME SB 619/SB 775 | ASME SB 622/SB 829 | ASME SB 626/SB 751 | ASTM B 619/B 775 | ASTM B 622/B 829 | ASTM B 626/B 751 | DIN 17751 | ISO 6207
Nickel Alloy Compositions Density
8.69 g/cm³ | 0.314 lbs/in³
Specifications Material
Hastelloy®
Specifications Nominal Diameter Metric
125 mm
Specifications Nominal Diameter Standard
5 inches
Specifications Od
5.563 inches | 141.3002 mm
Specifications Shapeform
Pipe
Specifications Thickness
Sch. 40
