5-inch Standard Brass Companion Flange
5-inch Standard Brass Companion Flange
SKU:FIT-fb0fb8
Durable 5-inch brass companion flange for industrial use. Secure connections, optimal performance. Meets federal standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
5-inch Standard Brass Companion Flange
$34.99
Quantity: 1
Claim Your Seller Account
5-inch Standard Brass Companion Flange
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5-inch Standard Brass Companion Flange is a durable and reliable fitting designed for optimal performance in industrial applications. With an outer diameter of 10 inches, bolt circle diameter of 8 1/2 inches, and a sturdy flange thickness of 3/4 inches, this companion flange ensures secure connections and efficient operation. Meeting federal procurement standards and industry-specific certifications, this brass fitting is a top choice for government and institutional buyers seeking quality and compliance.

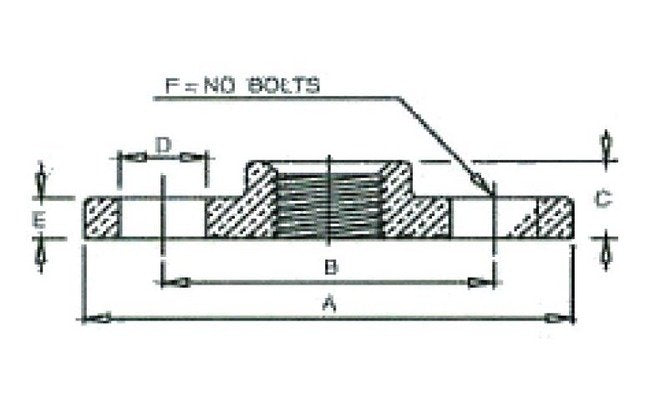

Product Specifications
Specifications Diameter Of Bolt Circle B
8 1/2
Specifications Diameter Of Bolt Hole D
7/8
Specifications Flange Thickness E
3/4
Specifications Height C
1 7/16
Specifications No Of Bolts F
8
Specifications Od Of Flange A
10
Specifications Size
5 inches
