5" Medium Wall Iron Pipe Size (IPS) Expansion Joint with O-Ring
5" Medium Wall Iron Pipe Size (IPS) Expansion Joint with O-Ring
SKU:BRI-c8aaf4
Enhance protection and stability with the 5" Medium Wall Iron Pipe Size Expansion Joint by Champion Fiberglass®.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
5" Medium Wall Iron Pipe Size (IPS) Expansion Joint with O-Ring
$49.99
Quantity: 1
Claim Your Seller Account
5" Medium Wall Iron Pipe Size (IPS) Expansion Joint with O-Ring
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your bridge conduit systems with the 5-inch Medium Wall Iron Pipe Size (IPS) Expansion Joint. Made by Champion Fiberglass®, this expansion joint features a durable construction with an O-Ring for added protection and stability. With a black finish and meeting Underwriters Laboratories (UL) standards, it is the perfect solution for ensuring safety and longevity in your infrastructure.
Product Specifications
Application
Used for more protection in 5" & 6"

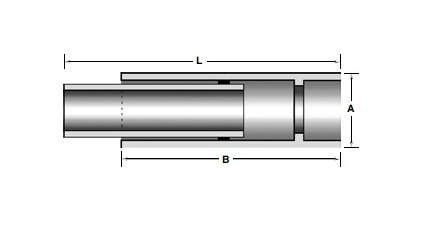

Dimesional Attributes A
5.79 in | 147 mm
Dimesional Attributes B
12 in | 305 mm
Dimesional Attributes L Max
23 in | 584 mm
Dimesional Attributes L Min
15 in | 381 mm
Dimesional Attributes Nominal Size
5 in
Features
Most Commonly used.
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Expansion
Specifications Type
Iron Pipe Size (IPS) Aboveground Single Expansion Joint with O-Ring
Specifications Wall Thickness
Medium Wall
Specifications Weight
1.25 kg | 2.76 lb
