5" Nominal Size Heavy Wall PVC Single Expansion Joint
5" Nominal Size Heavy Wall PVC Single Expansion Joint
SKU:PVC-b46897
Enhance conduit protection with the 5" HD PVC Expansion Joint by Champion Fiberglass®.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
5" Nominal Size Heavy Wall PVC Single Expansion Joint
$49.99
Quantity: 1
Claim Your Seller Account
5" Nominal Size Heavy Wall PVC Single Expansion Joint
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your conduit system with the 5" Nominal Size Heavy Wall PVC Single Expansion Joint with O-Ring from Champion Fiberglass®. This aboveground joint offers increased protection, suitable for 4" - 8" applications. Featuring a durable construction and precise dimensions, this expansion joint is a reliable choice for optimal duct performance. Ensure proper installation using the yellow line indicator and benefit from its versatility and ease of use.
Product Specifications
Application
Used for increased protection in 4" - 8"

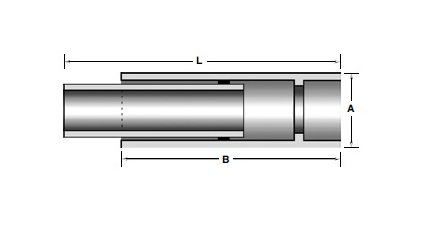

Dimesional Attributes A
5.85 in | 149 mm
Dimesional Attributes B
12 in | 305 mm
Dimesional Attributes L Max
23 in | 584 mm
Dimesional Attributes L Min
15 in | 381 mm
Dimesional Attributes Nominal Size
5 in
Features
Most Commonly used.
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Style
Expansion
Specifications Type
Iron Pipe Size (IPS) Aboveground Single Expansion Joint with O-Ring
Specifications Wall Thickness
Heavy Wall
Specifications Weight
1.36 kg | 3.00 lb
