5" Schedule 40S Type A Buttweld Stub End

Name: 5" Schedule 40S Type A Buttweld Stub End
Brand: Core Pipe Products, Inc.
SKU: BUT-9a0aca
Price: 45.99 USD
Availability: OutOfStock

SKU:BUT-9a0aca

High-quality 5" Schedule 40S Type A Buttweld Stub End by Core Pipe Products for durable and precise industrial pipe connections.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 5 Inch Schedule 40S Type A Buttweld Stub End is a high-quality product from Core Pipe Products, designed for superior performance in industrial applications. With precise dimensions including a 5.560-inch outside diameter and Grade options ranging from Carbon Steel to Super Duplex, this stub end ensures reliable connectivity. Its Schedule 40S wall thickness provides durability while meeting stringent quality standards like ASTM and ASME. Ideal for heavy-duty piping systems, this stub end offers corrosion resistance and precise fitment, making it a reliable choice for contractors and government procurements.

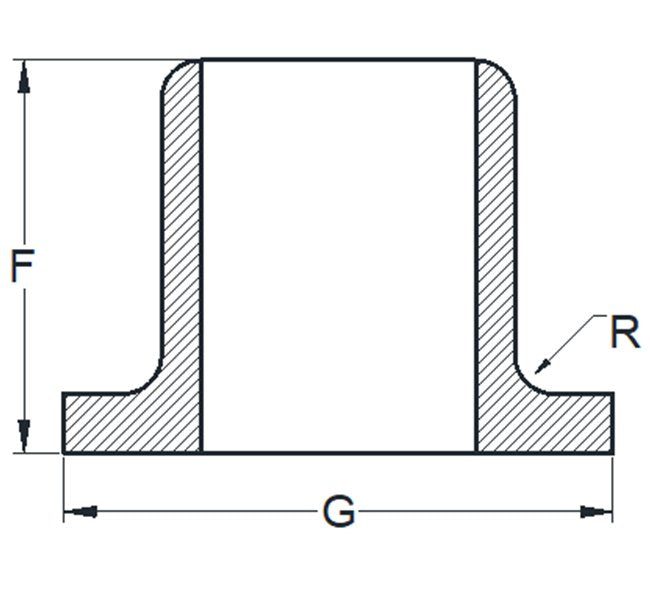

Product Specifications

Technical Specs Brands

Core Pipe Products

Technical Specs F

3.000 in

Technical Specs G

7.310 in

Technical Specs Grade

1925 | 2205 | 2207 | 230 | 254SMO | 260 | 303 | 304/L | 304H | 309 | 310 | 310H | 316/L | 316H | 317 | 317LMN | 321 | 321H | 330 | 347 | 347H | 6061T6 | 625 | 70/30 | 800 | 800H | 800HT | 825 | 90/10 | 904 | A350LF2 CL1 | AL6XN | Alloy 20 | Alloy 200 | Alloy 400 | Alloy 600 | B2 | B3 | C2000 | C-22 | C-276 | Carbon Steel | Ductile Iron | F44 | G-30 | HR-160 | P-11/F-11 | P-22/F-22 | P-5/F-5 | P-91/F-91 | Polytetrafluoroethylene (PTFE) | Special 316/L | Super Duplex | Titanium GR-2 | Zeron Unified National Special (UNS) 32760

Technical Specs Outside Diameter

5.560 in

Technical Specs R

0.440 in

Technical Specs Size

5 in

Technical Specs Wall

Schedule 40S

Technical Specs Weight

6.15 lb

5" Schedule 40S Type A Buttweld Stub End
