5 Ton Top Running Single Girder Motor Driven Crane
5 Ton Top Running Single Girder Motor Driven Crane
SKU:REL-b95456
High-performance 5 Ton Top Running Motor Driven Crane, designed for stability and efficiency in extreme conditions.
Regular price
$4,799.99
Regular price
Sale price
$4,799.99
Unit price
per
Initiate Order
5 Ton Top Running Single Girder Motor Driven Crane
$4,799.99
Quantity: 1
Claim Your Seller Account
5 Ton Top Running Single Girder Motor Driven Crane
$4,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

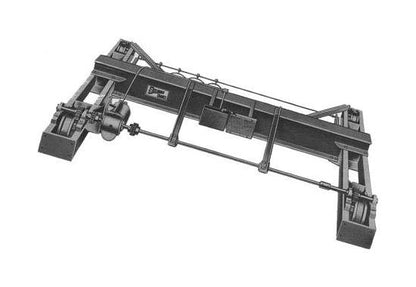

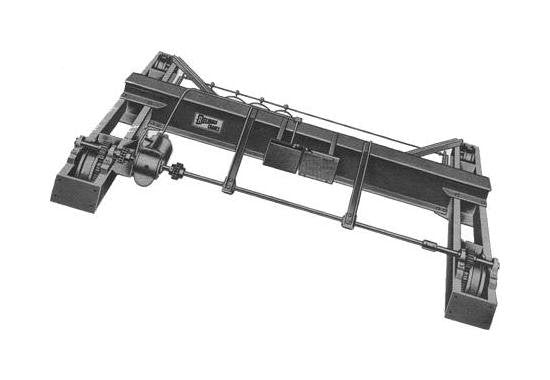

The Model TSS Motorized Crane is a high-performance solution designed for extreme conditions in both indoor and outdoor settings. With a 5-ton capacity and a 20'-0" span, this crane excels in stability and efficiency. Featuring S15 x 42.9C girder size for added strength, it is equipped with a safety enclosed runway rail, wheel load of 6290 lbs. per wheel, and a compact design with dimensions tailored for optimal performance. Ideal for institutional and government buyers seeking top running, single girder cranes that meet stringent quality and safety standards.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
5 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
2770 lbs.

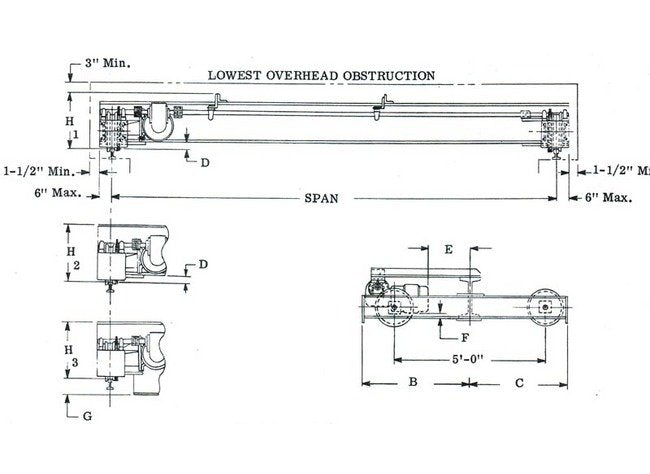

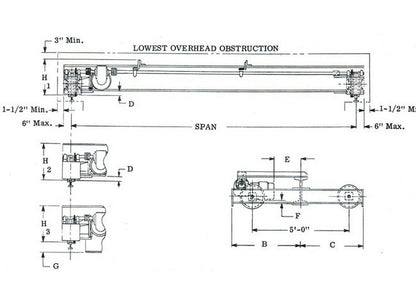

Specifications Dimension B
3'-5"
Specifications Dimension C
3'-1"
Specifications Dimension D
7/8 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
5 inches
Specifications Dimension H1
19 inches
Specifications Dimension H2
16 inches
Specifications Electric
&nbps;
Specifications Girder Size
S15 x 42.9C
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
20'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
10 inches
Specifications Wheel Load Per Wheel
6290 lbs.
