5-Ton Top Running Single Girder Motor Driven Cranes - Model TSS
5-Ton Top Running Single Girder Motor Driven Cranes - Model TSS
SKU:REL-f931ed
High-performance 5-ton motor-driven crane for extreme conditions, indoor/outdoor use.
Regular price
$12,999.00
Regular price
Sale price
$12,999.00
Unit price
per
Initiate Order
5-Ton Top Running Single Girder Motor Driven Cranes - Model TSS
$12,999.00
Quantity: 1
Claim Your Seller Account
5-Ton Top Running Single Girder Motor Driven Cranes - Model TSS
$12,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

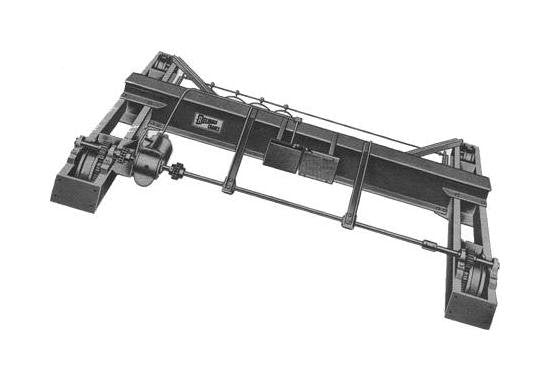

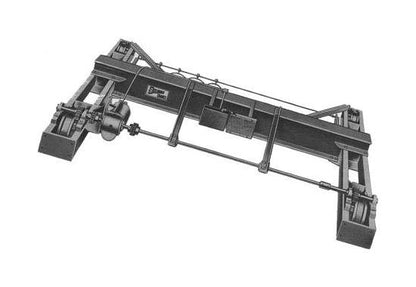

Experience superior lifting capabilities with our 5-ton capacity Model TSS Motorized Crane. Featuring a durable S15 x 42.9C girder size, this crane is designed for extreme conditions and can be used both indoors and outdoors. With a span of 22'-6" and robust construction, it offers reliable performance in demanding environments. Equipped with a top-running, single girder design and motor-driven operation, this crane ensures efficient and safe lifting operations. The hand-geared trolley and hoist provide versatility for various handling needs. Trust in our crane for optimal performance and durability.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
5 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
2950 lbs.

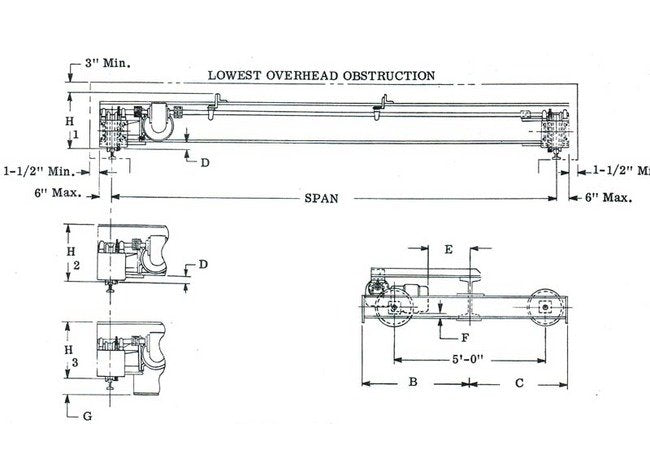

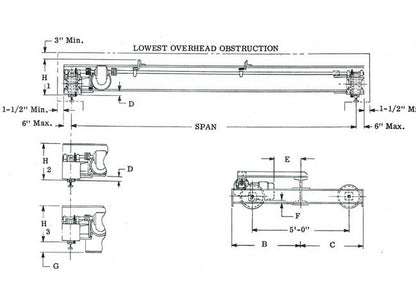

Specifications Dimension B
3'-5"
Specifications Dimension C
3'-1"
Specifications Dimension D
7/8 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
5 inches
Specifications Dimension H1
19 inches
Specifications Dimension H2
16 inches
Specifications Electric
&nbps;
Specifications Girder Size
S15 x 42.9C
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
22'-6"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
10 inches
Specifications Wheel Load Per Wheel
6340 lbs.
