50 Inch (in) Casing Side Advanced Acoustical Cone for Greenheck Vane Axial Fan
50 Inch (in) Casing Side Advanced Acoustical Cone for Greenheck Vane Axial Fan
SKU:SIL-86f133
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
50 Inch (in) Casing Side Advanced Acoustical Cone for Greenheck Vane Axial Fan
$49.99
Quantity: 1
Claim Your Seller Account
50 Inch (in) Casing Side Advanced Acoustical Cone for Greenheck Vane Axial Fan
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Dynamic Insertion Loss Dynamic Insertion Loss 1000 Hertz Hz 1500
25 dB
Dynamic Insertion Loss Dynamic Insertion Loss 125 Hertz Hz 1500
6 dB
Dynamic Insertion Loss Dynamic Insertion Loss 2000 Hertz Hz 1500
25 dB
Dynamic Insertion Loss Dynamic Insertion Loss 250 Hertz Hz 1500
12 dB
Dynamic Insertion Loss Dynamic Insertion Loss 4000 Hertz Hz 1500
14 dB
Dynamic Insertion Loss Dynamic Insertion Loss 500 Hertz Hz 1500
21 dB
Dynamic Insertion Loss Dynamic Insertion Loss 63 Hertz Hz 1500 F
2 dB
Dynamic Insertion Loss Dynamic Insertion Loss 8000 Hertz Hz 1500
11 dB
Note
For each 1500 FPM over 1500, add 1 dB per band.
Specifications Casing Side
50 in
Specifications Inlet Diameter
43 in
Specifications Length
43 in
Specifications Maximum Air Flow
13000 ft³/min
Specifications Outlet Diameter
20.375 in

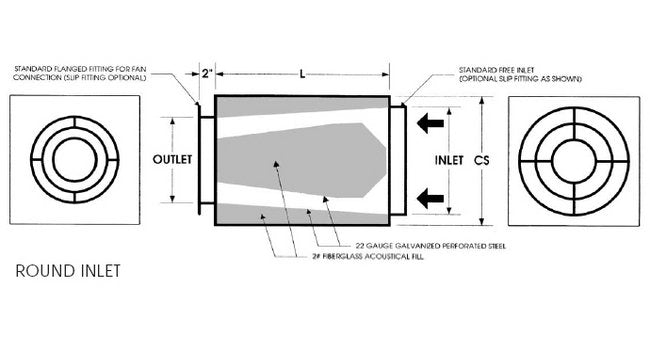

Specifications Shape Of Inletoutlet
Round Inlet
Specifications Silencer Size Class
A
Specifications Type
Acoustical
Specifications Use For
Greenheck Vane Axial Fans
