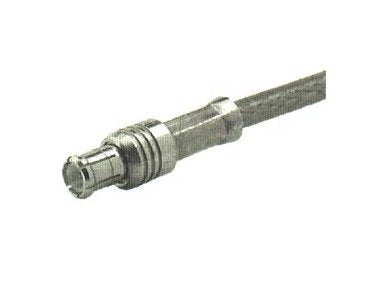

50 Ohm MCX Straight Cable Plugs (Male)
50 Ohm MCX Straight Cable Plugs (Male)
SKU:MCX-c460d5
High-performance 50 Ohm MCX Straight Cable Plugs (Male) for secure RF connectivity in communication and aerospace applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
50 Ohm MCX Straight Cable Plugs (Male)
$24.99
Quantity: 1
Claim Your Seller Account
50 Ohm MCX Straight Cable Plugs (Male)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 50 Ohm MCX Straight Cable Plugs (Male) are precision-engineered for reliable RF connectivity. With impedance rated at 50 Ohms and a frequency range from DC to 6 GHz, these plugs ensure minimal RF leakage and high durability with over 500 matings. Featuring brass body and pin contacts, beryllium copper outer contacts, and PTFE/PFA insulator, they offer superior performance in temperature extremes from -67 to 311 degrees F. Compliant with stringent industry standards, these connectors are ideal for demanding applications in communication and aerospace sectors.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U4
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
