The 50 Ohm Primary DC Resistance J Series Audio Transformer from Triad offers exceptional performance for amplifiers aiming to surpass broadcast standards while remaining cost-effective. With primary impedance options of 50 Ohm, 250 Ohm, and 600 Ohm, and secondary impedance of 60000 Ohm, this transformer ensures versatile compatibility. Featuring a 1:10 overall turn ratio, low-level high fidelity, and a wide frequency response range of 30 to 15000 Hz, this transformer is perfect for line or mic to grid applications. Additionally, it includes a static shield, alloy shielding for 60 to 80 dB hum reduction, single-hole mounting for maximum hum reduction, and lightweight construction for ease of installation.
Product Specifications
Applications Applications
Line or Mike to Grid
Direct Current Dc Resistance Dc Resistance Primary
50 Ohm
Direct Current Dc Resistance Dc Resistance Secondary
5000 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Max
10 mW
Electrical Specifications At 25 Degree Celsius C Temperature Ove
1:10
Electrical Specifications At 25 Degree Celsius C Temperature Pri
50 Ohm | 250 Ohm | 600 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
60000 Ohm
Features Features
Low level high fidelity.Single-hole mounting, allowing rotation for maximum hum reduction. Alloy shielding gives 60 to 80 dB hum reduction. Wide frequency ranges. Flexible leads for ease of mounting. Input units electrostatically and magnetically shielded .Lightweight. Smooth, baked enamel cases, 1-3/8" diameter, 1-3/4" above chassis . Legible circuit diagrams permanently affixed to every case.
Note Note
Static Shield
Specifications Case Dimension D
1-3/8 in
Specifications Case Dimension H
1-3/4 in
Specifications Case Type
J
Specifications Connections
Leads

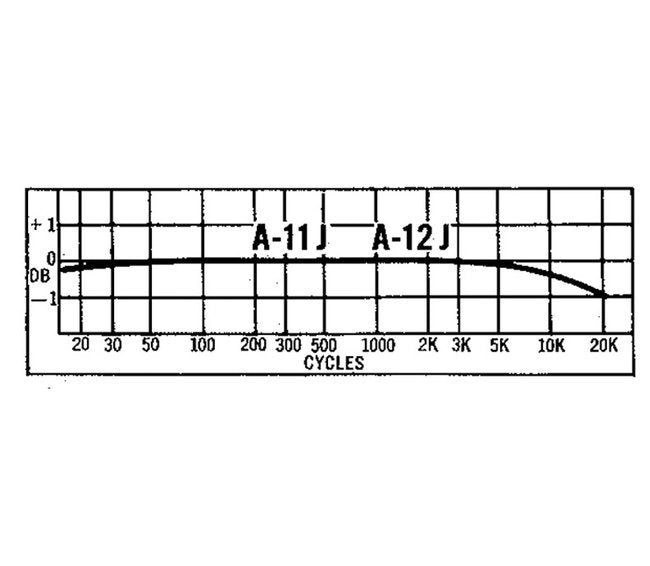

Specifications Frequency Response At 3 Db
30 to 15000
Specifications Hum Reduction
60 to 80 dB
Specifications Maximum Unit Weight
0.35 lb
Specifications Mounting Hole Diameter
3/8 in
Specifications Rms Test Voltage
500
