SKU:AUD-727c10
Enhance audio performance with the 50 Ohm Primary DC Resistance J Series Audio Transformer. Ideal for balanced line or mike to grid applications. Alloy shielding for 60-80 dB hum reduction.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
50 Ohm Primary DC Resistance J Series Audio Transformer
$69.99
Quantity: 1
Claim Your Seller Account
50 Ohm Primary DC Resistance J Series Audio Transformer
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 50 Ohm Primary DC Resistance J Series Audio Transformer from the J Series Audio Transformers line is designed to exceed broadcast standards while offering exceptional performance characteristics. This transformer features a 50 Ohm DC Resistance on the primary side, catering to a variety of applications such as balanced line or mike to grid setups. With a maximum input level of 10 mW and a primary impedance range of 150 Ohm | 600 Ohm, this transformer ensures reliable and high-fidelity audio transmission. Additionally, its alloy shielding provides 60 to 80 dB hum reduction, wide frequency response, and lightweight design, making it ideal for institutional and government procurement needs.
Product Specifications
Applications Applications
Balanced Line or Mike to Grid
Direct Current Dc Resistance Dc Resistance Primary
50 Ohm
Direct Current Dc Resistance Dc Resistance Secondary
4920 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Max
10 mW
Electrical Specifications At 25 Degree Celsius C Temperature Ove
1:10
Electrical Specifications At 25 Degree Celsius C Temperature Pri
150 Ohm | 600 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
60000 Ohm
Features Features
Low level high fidelity.Single-hole mounting, allowing rotation for maximum hum reduction. Alloy shielding gives 60 to 80 dB hum reduction. Wide frequency ranges. Flexible leads for ease of mounting. Input units electrostatically and magnetically shielded .Lightweight. Smooth, baked enamel cases, 1-3/8" diameter, 1-3/4" above chassis . Legible circuit diagrams permanently affixed to every case.
Note Note
Static Shield
Specifications Case Dimension D
1-3/8 in
Specifications Case Dimension H
1-3/4 in
Specifications Case Type
J
Specifications Connections
Leads

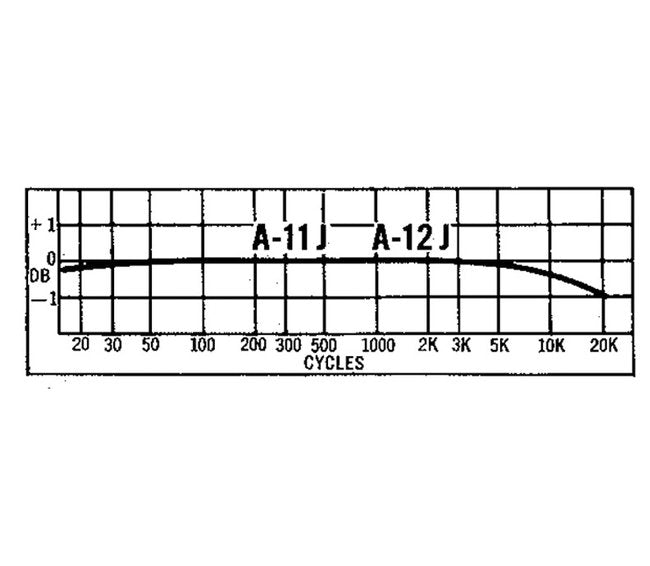

Specifications Frequency Response At 3 Db
30 to 15000
Specifications Hum Reduction
60 to 80 dB
Specifications Maximum Unit Weight
0.35 lb
Specifications Mounting Hole Diameter
3/8 in
Specifications Rms Test Voltage
500
Specifications Transformer Contact Type
Center Tap | Split Winding
