50 Series 4-Way Cable Tie Mounting Bases
50 Series 4-Way Cable Tie Mounting Bases
SKU:02C-d9c4ad
Secure cable tie mounting bases with adhesive and screw options. Durable Nylon 66 material for industrial cable management.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
50 Series 4-Way Cable Tie Mounting Bases
$29.99
Quantity: 1
Claim Your Seller Account
50 Series 4-Way Cable Tie Mounting Bases
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 50 Series 4-Way Mounting Bases offer a secure solution for cable tie applications. These bases feature adhesive backing with rubber-based (Acrylic available) and screw mount options, providing versatility for installation. Made from Nylon 66 UL94V-2 material, these bases come in Natural or UV Black colors. With a temperature range of -40 to 185F (-40 to 85C), they ensure durability in various environments. Suitable for cable ties with a capacity of 18-50 lbs (8.2-22.7 kg), these bases provide reliable cable management solutions for industrial and institutional settings.

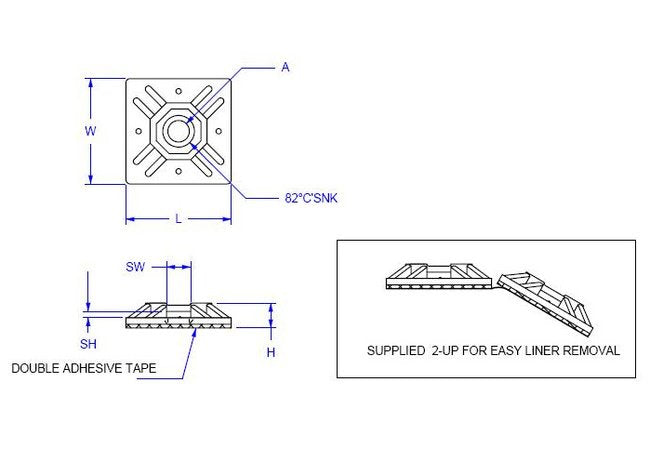

Product Specifications
Specifications Cable Tie Used
18 - 50 (8.2 - 22.7) lbs (Kg)
Specifications Color
Black
Specifications Dim H
.24 (6.1) inches (mm)
Specifications Dim L
1.00 ± .015 (25.4 ± .381) inches (mm)
Specifications Dim W
1.00 ± .015 (25.4 ± .381) inches (mm)
Specifications Fig No
2
Specifications S Slot Height
.055 (1.4) inches (mm)
Specifications S Slot Width
.20 (5.0) inches (mm)
