50 Series Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole

Name: 50 Series Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-8569cb
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-8569cb

Secure your circuit boards with the 50 Series Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole for reliable and durable installations.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

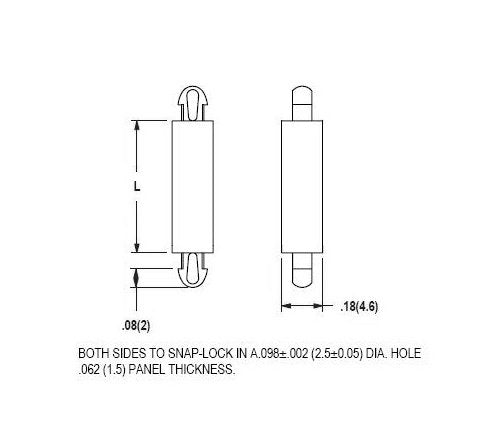

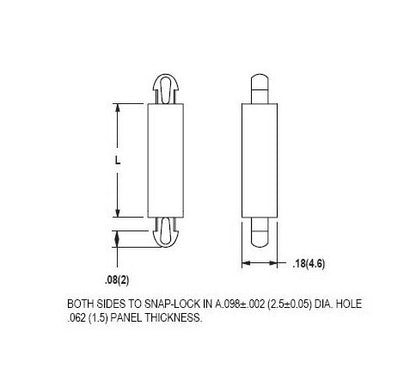

The 50 Series Dual Locking Board Support features a teardrop head design with .098-inch diameter holes on both ends, suitable for circuit board installations. Made from UL94V-2 Nylon 66 material, this support is durable and reliable, offering a secure hold for panels with a thickness of .062 inches. With a wide temperature range of -40 to 185 F, this support is RoHS compliant and meets ASTM standards for reliable performance in various environments.

Product Specifications

Specifications Dim L

.118 (3mm) +/- .015 inches (mm)

Specifications Hole Diameter

.098 (2.5mm) Both Ends inches (mm)

Specifications Panel Thickness

.062 (1.5mm) Both Ends inches (mm)

Specifications Remarks Hole Diameter

+/-.002

50 Series Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole
