50 Series Dual Locking Board Support (.098 Board Hole x .098 Chassis Hole)
50 Series Dual Locking Board Support (.098 Board Hole x .098 Chassis Hole)
SKU:01C-35223d
Enhance circuit board stability with the 50 Series Dual Locking Board Support featuring .098 board hole x .098 chassis hole.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
50 Series Dual Locking Board Support (.098 Board Hole x .098 Chassis Hole)
$24.99
Quantity: 1
Claim Your Seller Account
50 Series Dual Locking Board Support (.098 Board Hole x .098 Chassis Hole)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

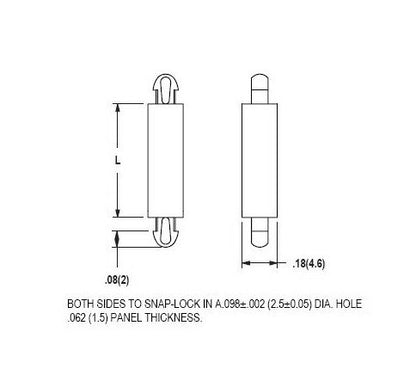

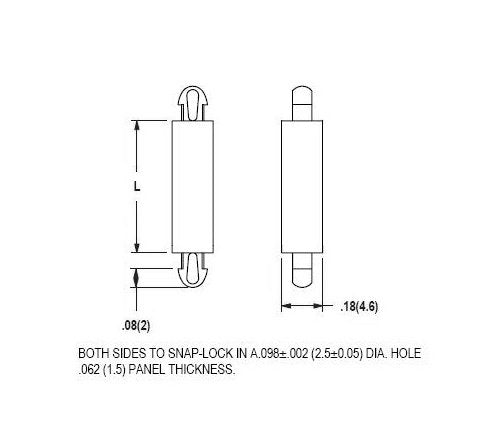

The 50 Series Dual Locking Board Support is designed with a teardrop head featuring a .098 diameter hole on both ends, ideal for circuit board supports. Crafted from Nylon 66 UL94V-2 material (also available in V-0 upon request), this support is RoHS compliant and meets ASTM D 4066 and PA111 standards. With a temperature range of -40 to 185°F (-40 to 85°C), this support ensures reliable performance in various conditions. Each pack contains 1000 pieces, offering durability and convenience for your projects.
Product Specifications
Specifications Dim L
.630 (16mm) +/- .015 inches (mm)
Specifications Hole Diameter
.098 (2.5mm) Both Ends inches (mm)
Specifications Panel Thickness
.062 (1.5mm) Both Ends inches (mm)
Specifications Remarks Hole Diameter
+/-.002
