50 Series Dual Locking Circuit Board Supports
50 Series Dual Locking Circuit Board Supports
SKU:01C-fe6ec5
Secure and durable 50 Series Dual Locking Circuit Board Supports for precise assembly needs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
50 Series Dual Locking Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
50 Series Dual Locking Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

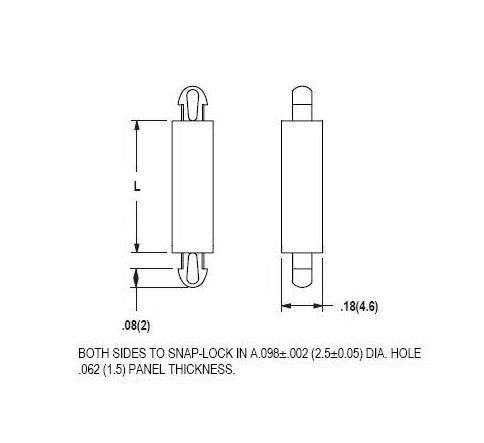

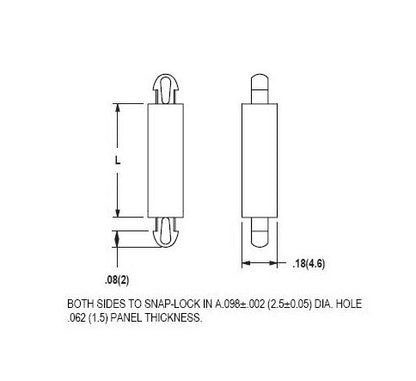

Enhance your circuit board assembly with our 50 Series Dual Locking Circuit Board Supports. These teardrop head supports feature a .098-inch diameter hole on both ends, ensuring secure attachment. Made from Nylon 66 UL94V-2 material, these supports are RoHS compliant and offer a temperature range of -40 to 185°F. With ASTM D4066 and PA111 certifications, these supports meet rigorous industry standards for durability and reliability.
Product Specifications
Specifications Dim L
.276 (7mm) +/- .015 inches (mm)
Specifications Hole Diameter
.098 (2.5mm) Both Ends inches (mm)
Specifications Panel Thickness
.062 (1.5mm) Both Ends inches (mm)
Specifications Remarks Hole Diameter
+/-.002
