50 Series Dual Locking Nylon Board Supports
50 Series Dual Locking Nylon Board Supports
SKU:01C-d5ae0f
Secure circuit boards with precision using 50 Series Dual Locking Nylon Supports. RoHS compliant with a temperature range of -40 to 185°F.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
50 Series Dual Locking Nylon Board Supports
$39.99
Quantity: 1
Claim Your Seller Account
50 Series Dual Locking Nylon Board Supports
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 50 Series Dual Locking Nylon Board Supports are essential components for securing circuit boards with precision. These supports feature teardrop heads with a .098-inch diameter hole on both ends, ensuring a secure fit and stability. Manufactured with Nylon 66 UL94V-2 material (V-0 available), these supports meet ASTM D4066 and PA111 standards, making them RoHS compliant. With a temperature range of -40 to 185°F (-40 to 85°C), they offer durability and reliability in various operating conditions. Each pack contains 1000 supports to accommodate bulk installations, providing cost-effective solutions for industrial applications.

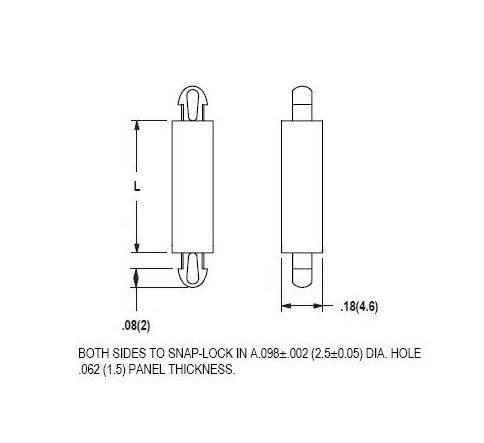

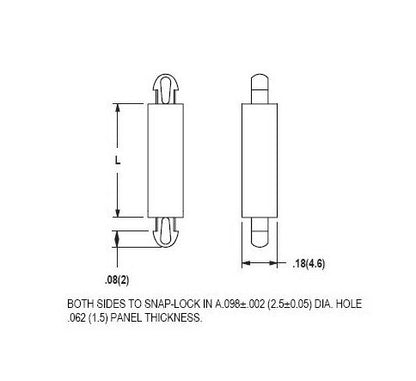

Product Specifications
Specifications Dim L
.156 (4mm) +/- .015 inches (mm)
Specifications Hole Diameter
.098 (2.5mm) Both Ends inches (mm)
Specifications Panel Thickness
.062 (1.5mm) Both Ends inches (mm)
Specifications Remarks Hole Diameter
+/-.002
