50 Series Nylon Dual Locking Board Support
50 Series Nylon Dual Locking Board Support
SKU:01C-274c51
Nylon Dual Locking Board Support for secure stability in circuit board applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
50 Series Nylon Dual Locking Board Support
$29.99
Quantity: 1
Claim Your Seller Account
50 Series Nylon Dual Locking Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

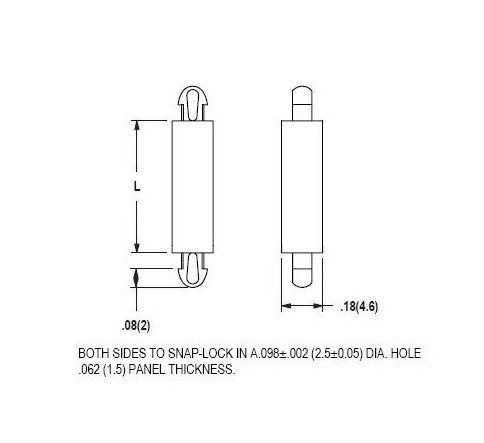

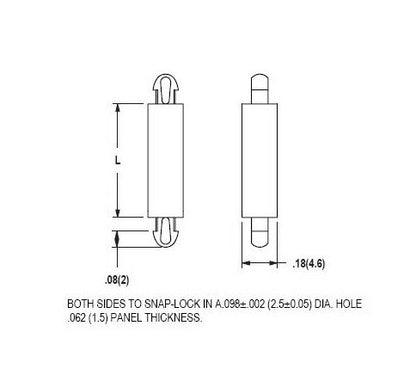

The 50 Series Nylon Dual Locking Board Support is designed for optimal stability and durability in circuit board applications. With a teardrop head and a .098 diameter hole on both ends, this support ensures secure fastening. Made of Nylon 66 UL94V-2 material (V-0 available), it meets ASTM D4066 and PA111 standards, as well as RoHS compliance. The support has a temperature range of -40 to 185°F (-40 to 85°C), making it suitable for varied environments.
Product Specifications
Specifications Dim L
.078 (2mm) +/- .015 inches (mm)
Specifications Hole Diameter
.098 (2.5mm) Both Ends inches (mm)
Specifications Panel Thickness
.062 (1.5mm) Both Ends inches (mm)
Specifications Remarks Hole Diameter
+/-.002
