50 Series Teardrop Dual Locking Board Support
50 Series Teardrop Dual Locking Board Support
SKU:01C-458d4f
Securely mount circuit boards with the 50 Series Teardrop Dual Locking Board Support. Made of Nylon 66 UL94V-2 material, RoHS compliant, and meets ASTM standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
50 Series Teardrop Dual Locking Board Support
$29.99
Quantity: 1
Claim Your Seller Account
50 Series Teardrop Dual Locking Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

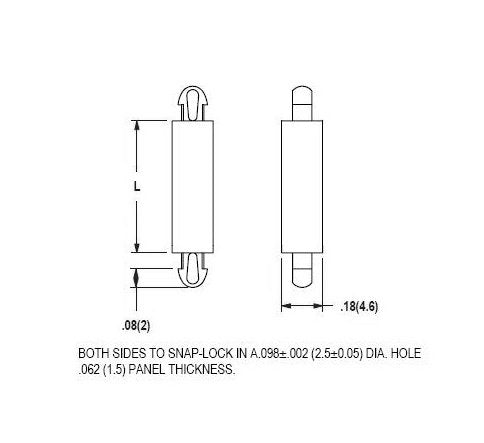

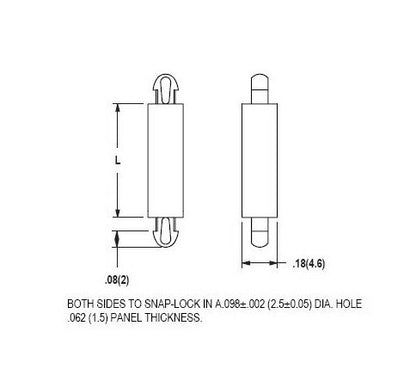

The 50 Series Teardrop Dual Locking Board Support is designed for secure mounting of circuit boards with .098-inch holes on both ends. Made from high-quality Nylon 66 UL94V-2 material, this support offers durability and reliability. It features a teardrop head for added stability and is RoHS compliant, ensuring environmental responsibility. With a temperature range of -40 to 185°F, this board support is suitable for a variety of applications. Additionally, it meets ASTM D 4066 and PA111 standards, making it a dependable choice for government and institutional procurement needs.
Product Specifications
Specifications Dim L
.472 (12mm) +/- .015 inches (mm)
Specifications Hole Diameter
.098 (2.5mm) Both Ends inches (mm)
Specifications Panel Thickness
.062 (1.5mm) Both Ends inches (mm)
Specifications Remarks Hole Diameter
+/-.002
