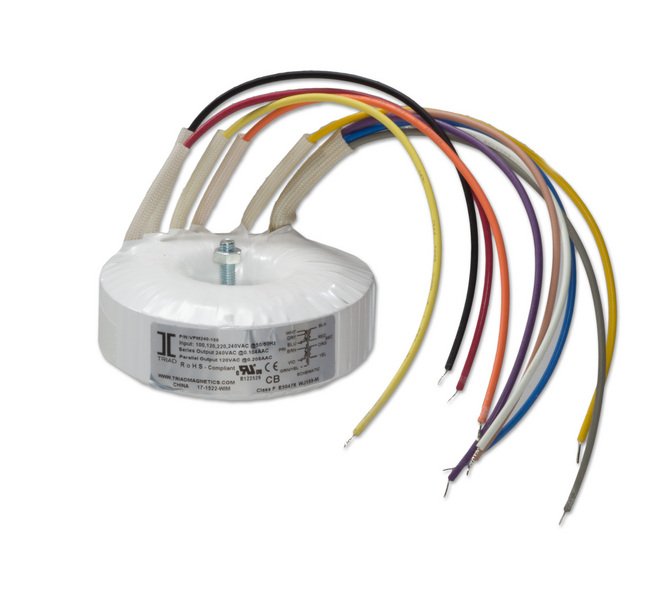

50 VA Power VPM Series Toroidal Medical Transformer
50 VA Power VPM Series Toroidal Medical Transformer
SKU:POW-f8e85a
High-performance 50 VA Toroidal Medical Transformer with Class F insulation, dual secondary voltages, and CE/CRU®US compliance for medical equipment.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
50 VA Power VPM Series Toroidal Medical Transformer
$99.99
Quantity: 1
Claim Your Seller Account
50 VA Power VPM Series Toroidal Medical Transformer
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 50 VA Power VPM Series Toroidal Medical Transformer is designed for precision and reliability in medical applications. With primary voltages ranging from 100-240 VAC, 50/60 Hz and secondary dual voltage options for parallel or series connection, it offers versatility and efficiency. Featuring Class F insulation, 4 kV dielectric isolation, low leakage current, and low stray fields, it ensures safe and stable power transmission. This transformer meets CE and CRU®US standards, making it ideal for medical equipment requiring stringent regulatory compliance.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
50 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
38 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
92 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
50 V·A
Specifications Secondary Voltage In Parallel
120 V at 0.42 A
Specifications Secondary Voltage In Series
240 V CT at 0.21 A
Specifications Regulation
12.0 %
Specifications Temperature Rise
45 ºC
Specifications Weight
0.7 kg
