50 VA Toroidal Medical Transformer
50 VA Toroidal Medical Transformer
SKU:POW-e5730f
Reliable and efficient 50 VA medical toroidal transformer with Class F insulation and 4kV dielectric isolation for precise voltage regulation in medical applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
50 VA Toroidal Medical Transformer
$149.99
Quantity: 1
Claim Your Seller Account
50 VA Toroidal Medical Transformer
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

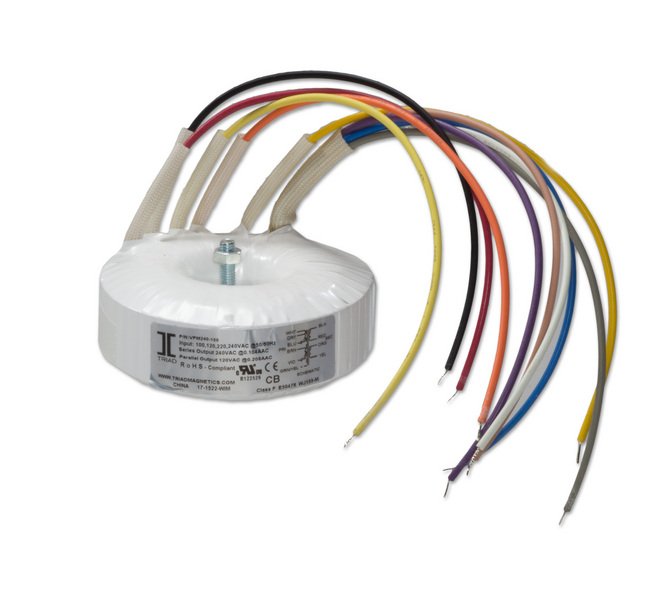

The 50 VA Toroidal Medical Transformer from the VPM Series is designed for precise voltage regulation and reliability in medical applications. With primary voltage options of 100V, 120V, 220V, or 240V and secondary voltages of 24V or 48V, this transformer offers flexibility for various setups. It features Class F insulation, 4kV dielectric isolation, low leakage current, and low stray fields, ensuring safe and efficient performance. Compliant with CE, CRU®US, and RoHS standards, this transformer is ideal for medical institutions requiring high-quality power solutions.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
50 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
38 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
24 V | 48 V
Specifications Outside Diameter
92 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical

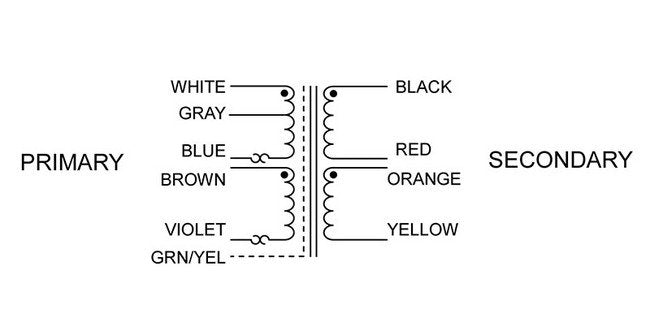

Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
50 V·A
Specifications Secondary Voltage In Parallel
24 V at 2.08 A
Specifications Secondary Voltage In Series
48 V CT at 1.04 A
Specifications Regulation
11.5 %
Specifications Temperature Rise
45 ºC
Specifications Weight
0.7 kg
